AUX switch wire code?

Jepstr67

Member
First Name
Todd
Joined
Aug 20, 2018
Messages
11
Reaction score
12
Location
Minnesota
Vehicle(s)
1967 Jeepster, 1982 J-10, 2018JLU 2005 Dodge Magnum, 1970 Cadillac DeVille
Occupation
CEO

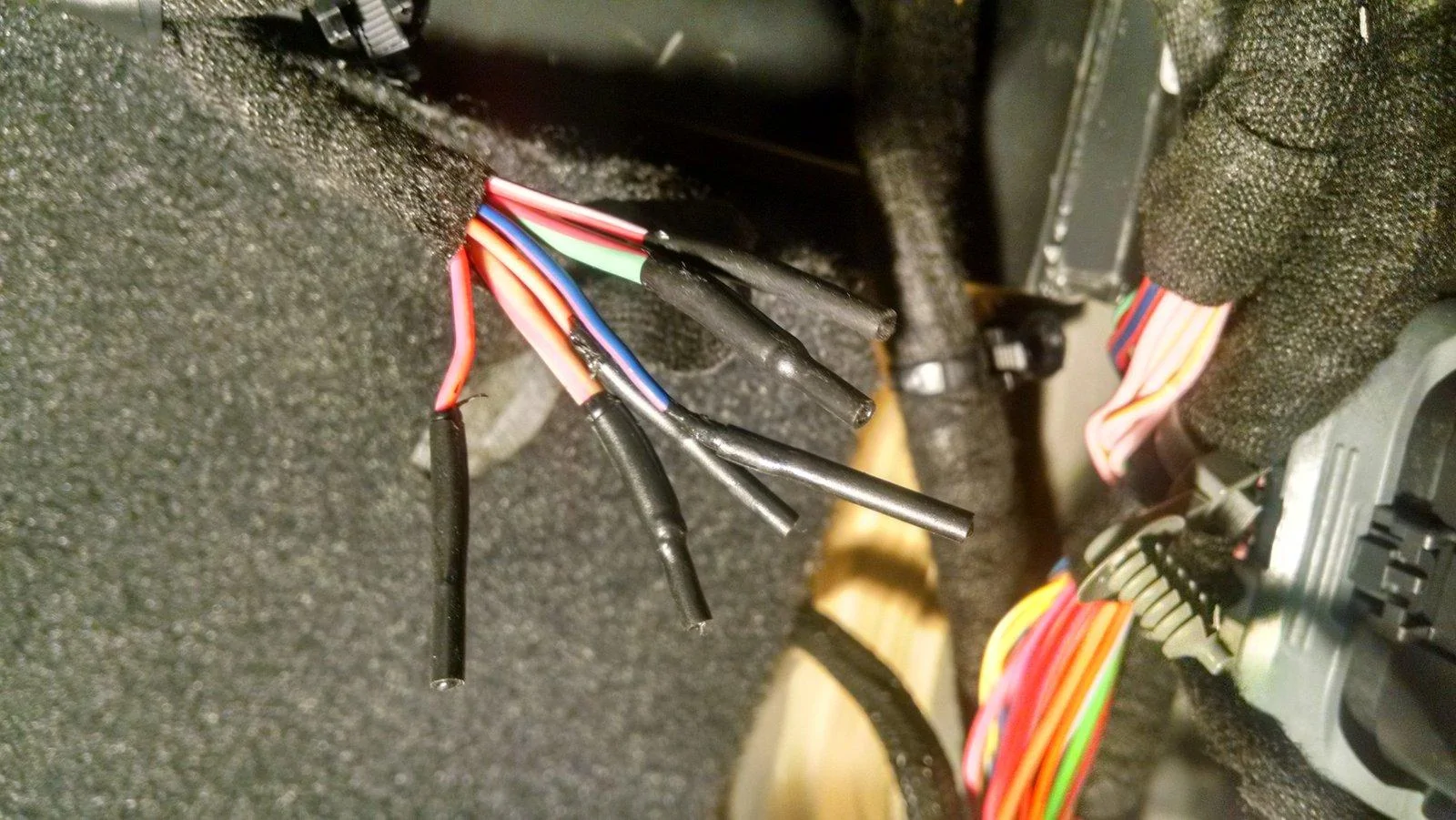

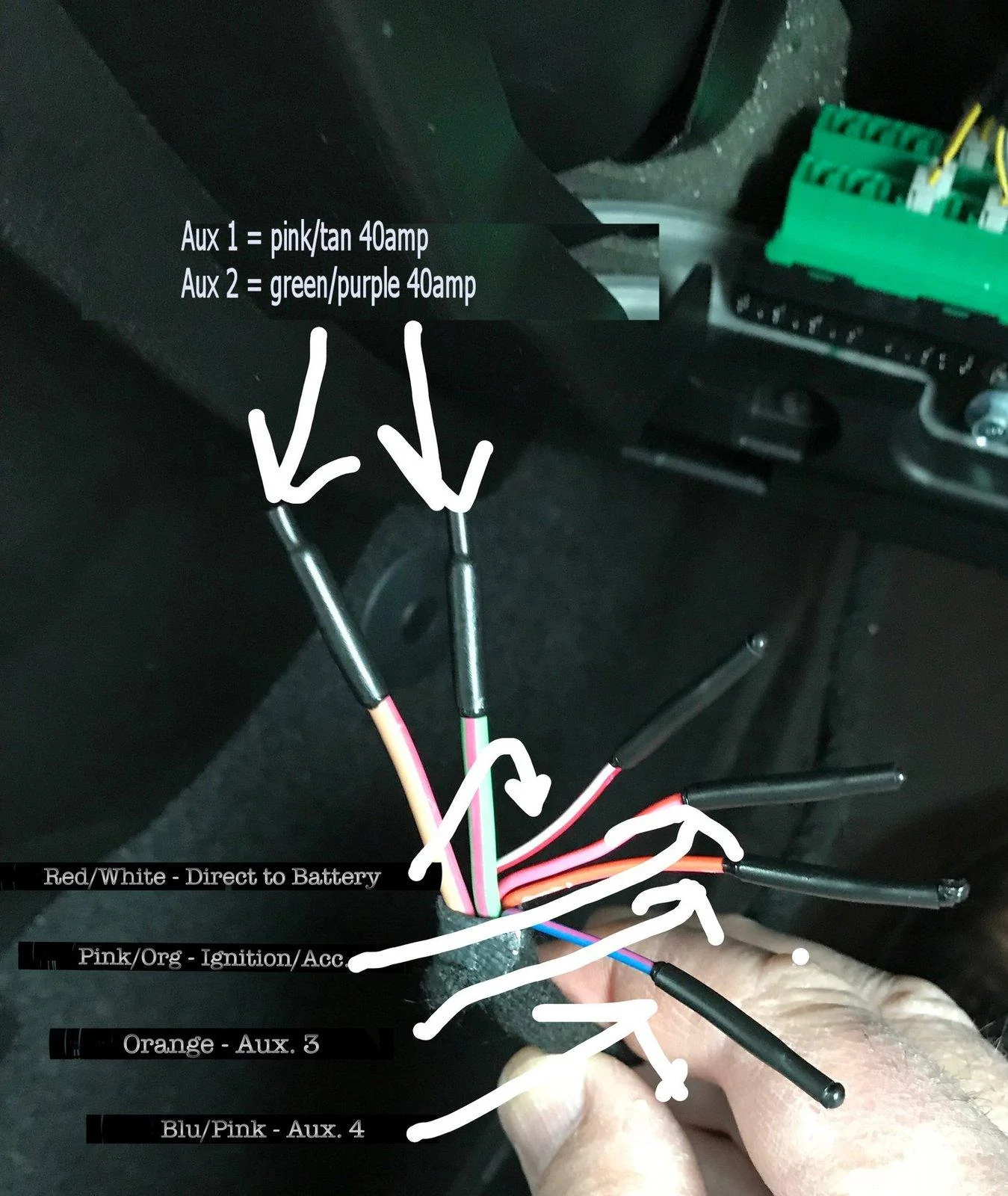

Which wires do what? I have 2 larger wires. Green with a pink stripe and Orange, then there are 4 smaller wires. Blue with a pink stripe, red, orange and orange with a white stripe. Which wire goes to what switch?

Advertisement


OP
OP
Jepstr67

Jepstr67

Member
First Name
Todd
Joined
Aug 20, 2018
Messages
11
Reaction score
12
Location
Minnesota
Vehicle(s)
1967 Jeepster, 1982 J-10, 2018JLU 2005 Dodge Magnum, 1970 Cadillac DeVille
Occupation
CEO
FIY, All I need is for a wire to go hot, and stay, when I flip one of the switches.
