Aux Switch Question

crothrock2000

Well-Known Member
First Name
Chris
Joined
May 21, 2018
Messages
89
Reaction score
30
Location
Northern Virginia
Vehicle(s)
2018 Jeep JL Sahara
Hey guys so I just had the Aux Switch installed by the dealership and I got it home and only Aux 3 button lights up when pressed. The others don't light up. So my question - is this normal? Does something need to be connected or configured in Uconnect Settings spot? Strange that one lights up but the other 3 do not. Any insight would be appreciated. Thanks, Chris
Advertisement



Rhinebeck01

Well-Known Member
Joined
May 9, 2018
Messages
7,593
Reaction score
9,629
Location
.
Vehicle(s)
2018 2dr. Rubi
Hey guys so I just had the Aux Switch installed by the dealership and I got it home and only Aux 3 button lights up when pressed. The others don't light up. So my question - is this normal? Does something need to be connected or configured in Uconnect Settings spot? Strange that one lights up but the other 3 do not. Any insight would be appreciated. Thanks, Chris
@crothrock2000

All 4 will light up whether you have an accessory attached to the Aux or not.

Even if the JL has not had the flash that turns on Aux, the lights will still light up if the install is aok.


JIMBOX

Well-Known Member
First Name
JAMES
Joined
Feb 19, 2018
Messages
1,707
Reaction score
1,721
Location
FERNLEY NV
Vehicle(s)
2018 HELLAYELLA JLU SAHARA/2016 "STINGER YELLOW" RAM
That's right I just went out to my JLR and put the IGN on "RUN" and tried all 4 AUX buttons--nothing

They worked fine two weeks ago and I used AUX#2 FOR MY REAR LIGHTS--WORKED FINE--NOW NOTHING-

I don't know much about the system, or what RELAY provides power to the AUX panel--

Any of you guys done any trouble shooting on this system--do you have any ideas/advice--???

I'd appreciate some fuse/relay numbers--I know F72 is OK-

Thanx

JIMBO


Rhinebeck01

Well-Known Member
Joined
May 9, 2018
Messages
7,593
Reaction score
9,629
Location
.
Vehicle(s)
2018 2dr. Rubi
@JIMBOX

In regard to Aux ....PDC has "HD ACCY" you will find relays 1, 2, 3, & 4, including K17, 18, 20 and 21.


JIMBOX

Well-Known Member
First Name
JAMES
Joined
Feb 19, 2018
Messages
1,707
Reaction score
1,721
Location
FERNLEY NV
Vehicle(s)
2018 HELLAYELLA JLU SAHARA/2016 "STINGER YELLOW" RAM

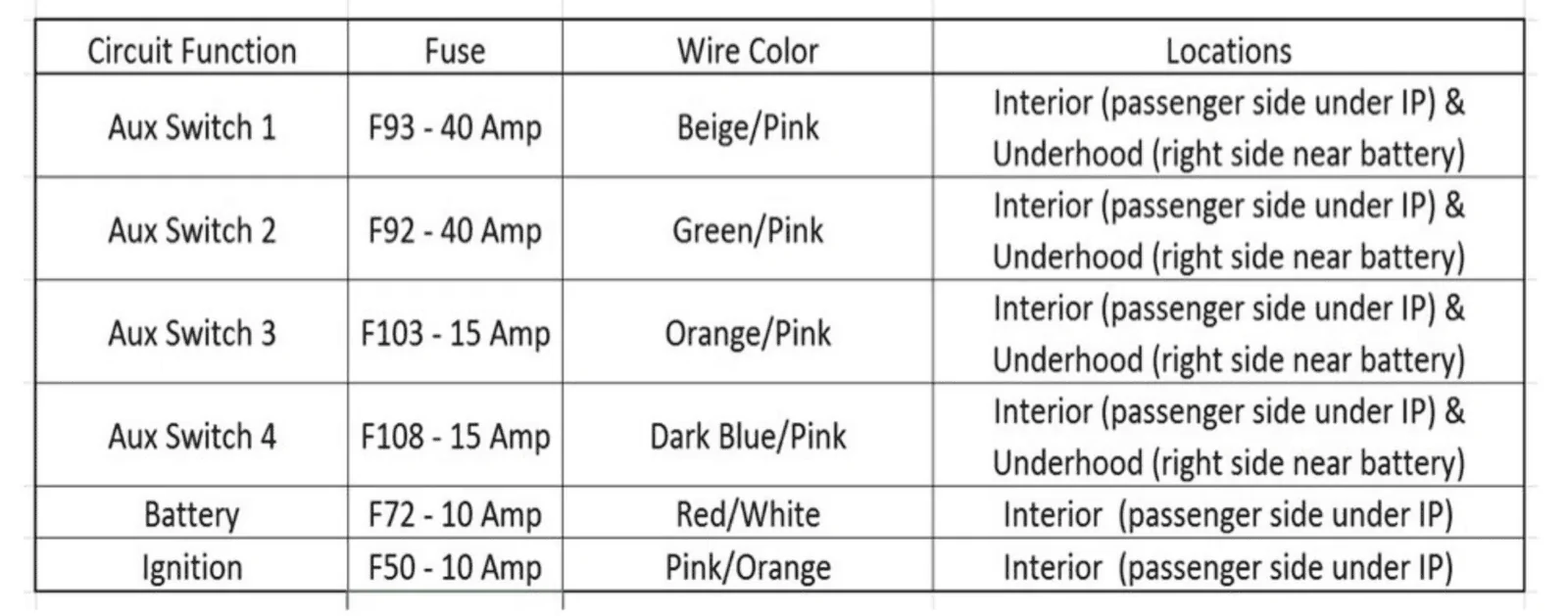

Thanx for the quick reply--I've got all that info, but-

I'm not getting ANY POWER TO THE COMPLETE SYSTEM--I think a relay must have BLOWN and I don't know the relays involved with MAIN AUX SWITCH SYSTEM-

Everything else in the jeep operates perfect, all lights acc.--etc--EXCEPT THE AUX PANEL--

BUMMER

JIMBO


Rhinebeck01

Well-Known Member
Joined
May 9, 2018
Messages
7,593
Reaction score
9,629
Location
.
Vehicle(s)
2018 2dr. Rubi
@JIMBOX
Was your Aux a factory install or done after you got your JL?

If all four Aux suddenly went out... no Aux button lights, l'd suspect the ground for Aux has been lost. If proper ground is lost, then you would see what you are seeing.

By the way.... Ignition can be off and each Aux button still will light when pushed.


JIMBOX

Well-Known Member
First Name
JAMES
Joined
Feb 19, 2018
Messages
1,707
Reaction score
1,721
Location
FERNLEY NV
Vehicle(s)
2018 HELLAYELLA JLU SAHARA/2016 "STINGER YELLOW" RAM
The JLR came with it standard and it worked fine the last time I used the rear lights--

That's good trouble shooting --lost main ground !!

Would you have any idea where the HELL THAT MIGHT BE ??

You think it could be one of those main ground posts next to the battery-??

I don't know how that could have happened, although there are a lot of things like that happen to these new JL's-

Thanx RHINEBECK01-

JIMBO


JIMBOX

Well-Known Member
First Name
JAMES
Joined
Feb 19, 2018
Messages
1,707
Reaction score
1,721
Location
FERNLEY NV
Vehicle(s)
2018 HELLAYELLA JLU SAHARA/2016 "STINGER YELLOW" RAM
I watched a "youtube" video on installing the MOPAR aux switch option and-

I noticed a small power module they show --

That's the problem--I gotta take time and find it--

Yeah, I know, I could take it to DEALER(WARRANTY), BUT --I'll try to fix it myself-FIRST !

JIMBO


5747kwk1

Member
First Name
Keith
Joined
Nov 24, 2018
Messages
18
Reaction score
1
Location
Fort Collins, Colorado
Vehicle(s)
2019 Jeep Wrangler Rubicon (TBT)
That's great. Let us know how it goes. Can you post the link to the youtube? Thanks!


JIMBOX

Well-Known Member
First Name
JAMES
Joined
Feb 19, 2018
Messages
1,707
Reaction score
1,721
Location
FERNLEY NV
Vehicle(s)
2018 HELLAYELLA JLU SAHARA/2016 "STINGER YELLOW" RAM
Go to youtube videos and type in--JL JEEP AUX SWITCH INSTALL--

That'll get you in the right video displays !

Good luck

JIMBO
That's great. Let us know how it goes. Can you post the link to the youtube? Thanks!
