ARB Single Compressor Install

CDwest7254

Active Member
First Name
Chris
Joined
Jul 6, 2019
Messages
29
Reaction score
29
Location
Wisconsin
Vehicle(s)
2019 Wrangler Moab Edition
Vehicle Showcase
1

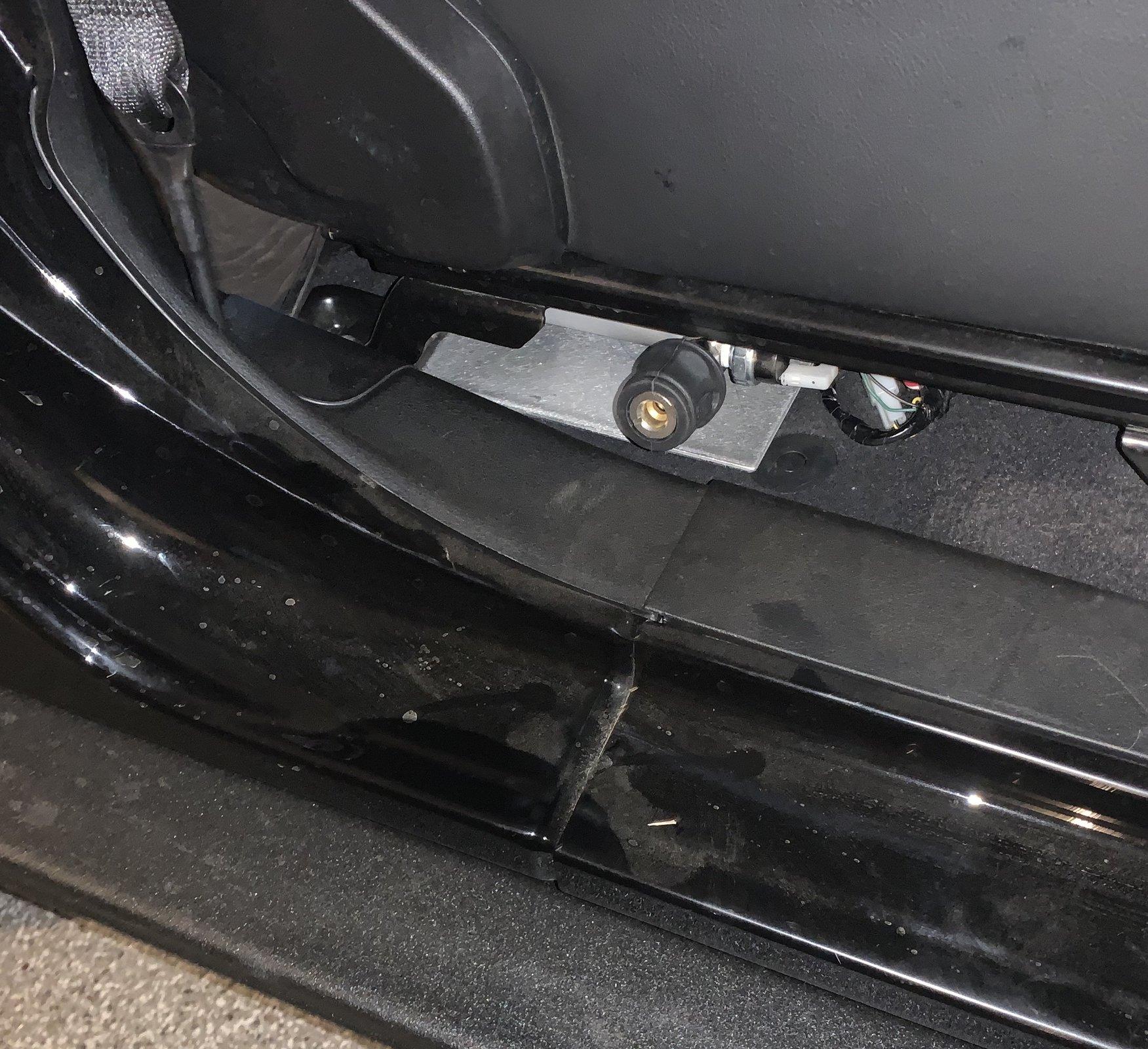

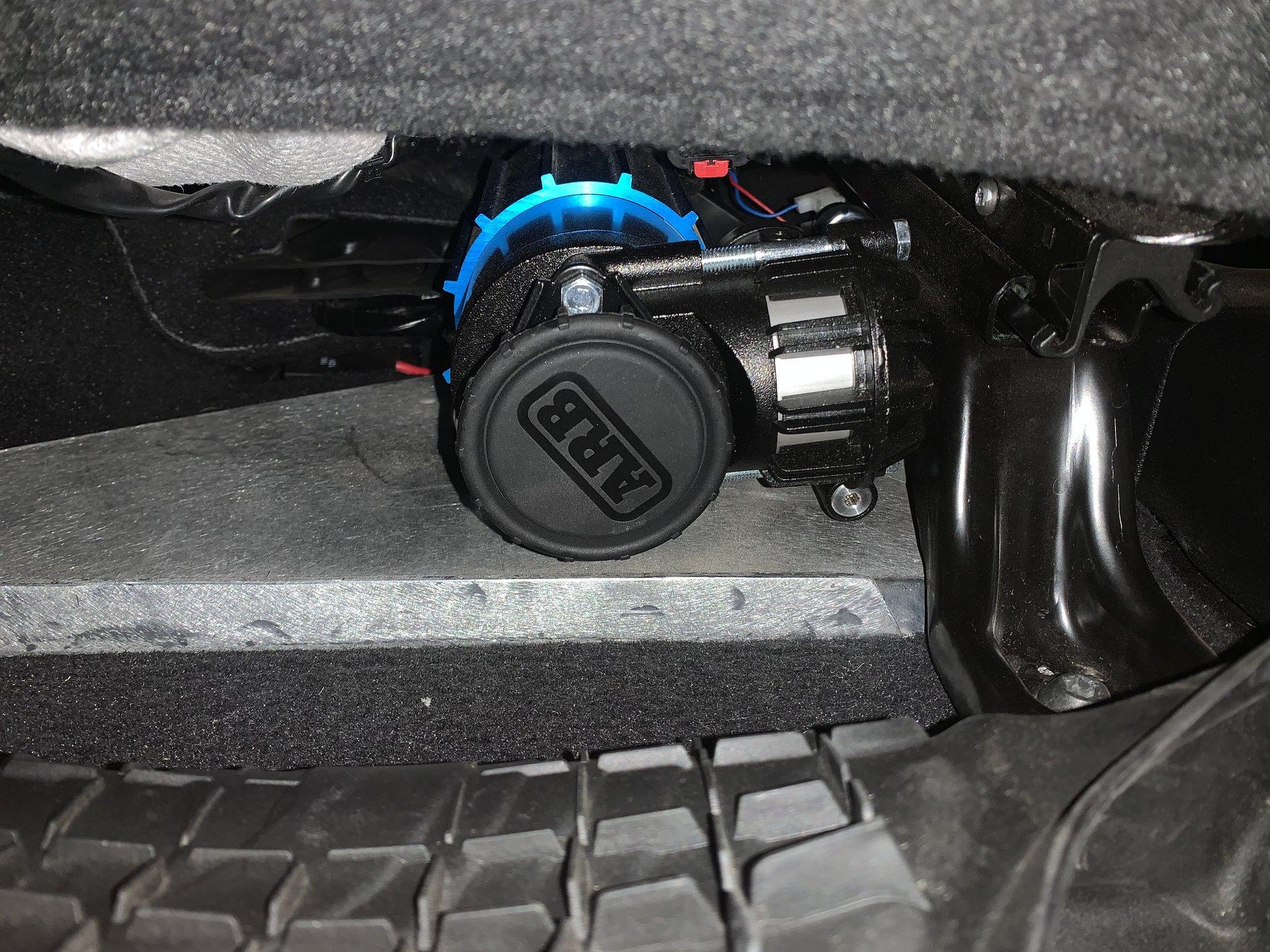

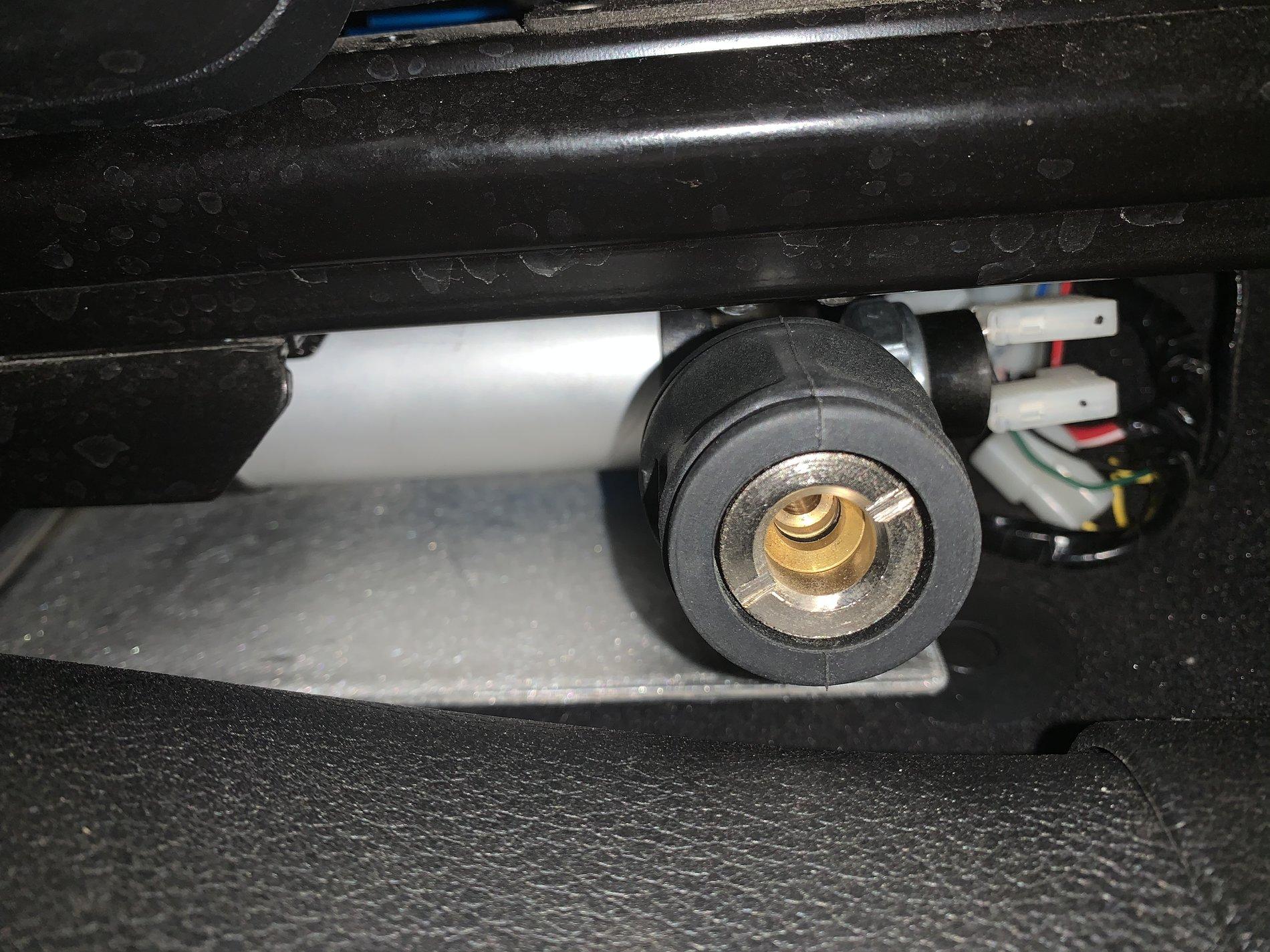

Finally figured out a sleek way to get onboard compressor under passenger seat with no drilling into the Jeep and only using factory holes as install points

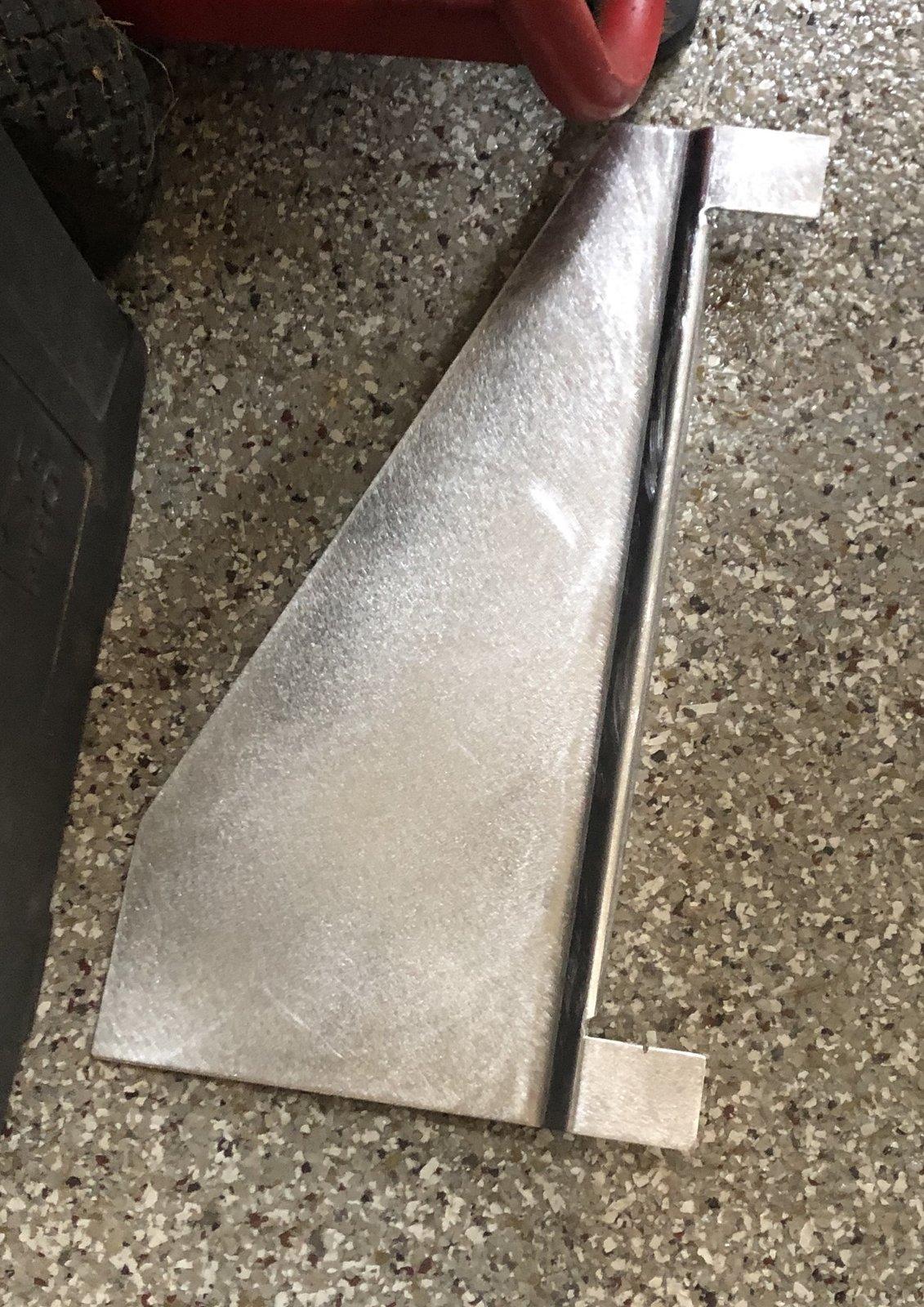

Had to fabricate my own bracket, but it turned out great. All I need to do now is anodize or powder coat the bracket.

Key points:
  1. I used factory harness hole in firewall to thread the compressor harness through (you do have to make the battery portion of the harness longer)

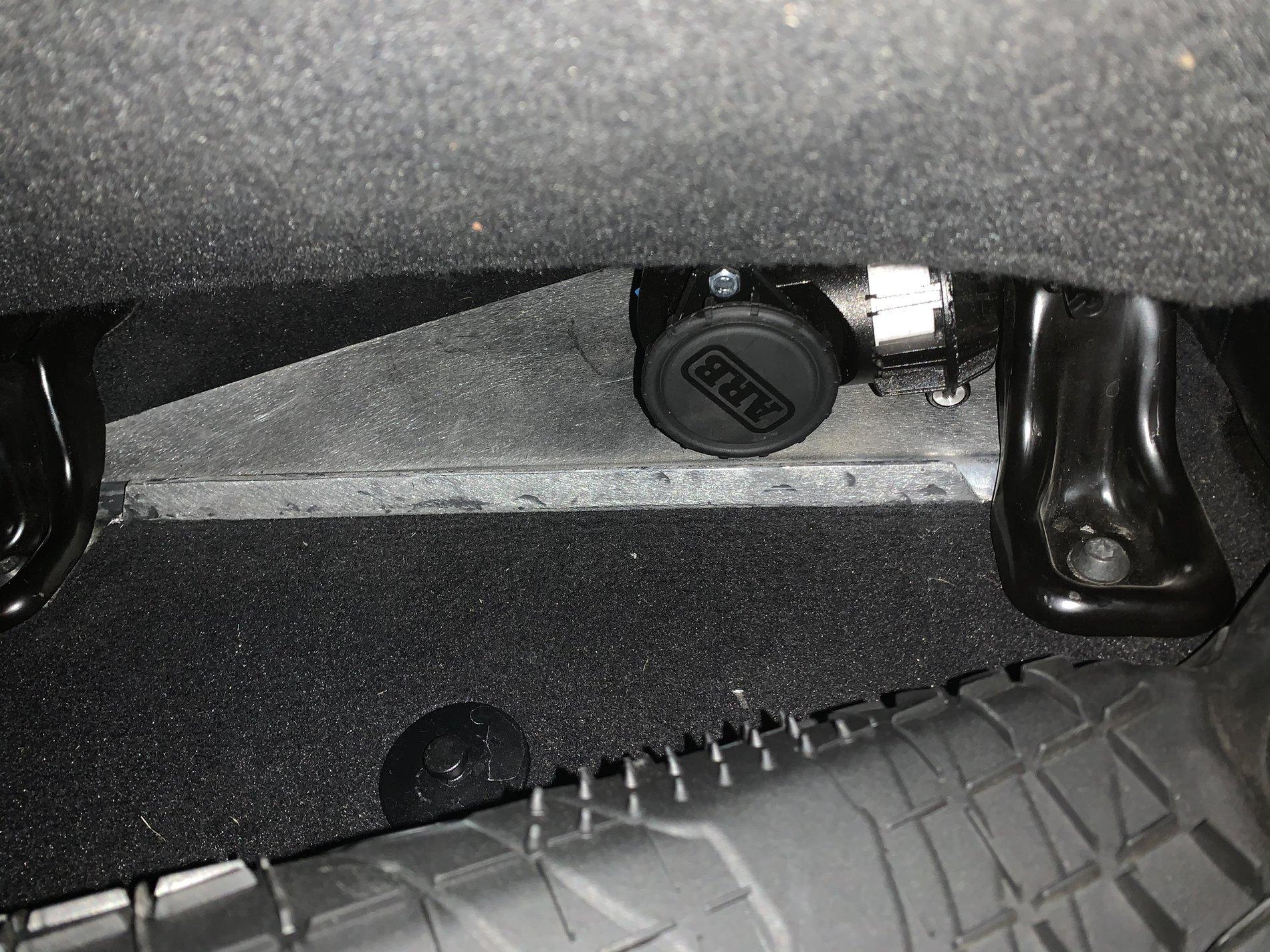

  2. I used the 2 rear bolts for the seat attachment to attach my custom bracket. I attached the compressor directly to the bracket. I made the bracket with 1/4 offset so the nuts on the bottom side would set directly on the carpet giving the bracket a perfectly flat install.
  3. I used the existing trim covers to route the harness up to the firewall
I hope this helps others because I couldn’t find an under seat bracket for the single anywhere.









Advertisement



Plongson

Well-Known Member
First Name
Paul
Joined
May 8, 2020
Messages
248
Reaction score
272
Location
So. Utah
Vehicle(s)
2020 Wrangler Rubicon JL Diesel, 1984 Jeep Cherokee XJ
Occupation
Retired engineer and business owner. Vibration analyst, reliability specialist.
Vehicle Showcase
1
Very interested in your setup...It looks like you used the single ARB and not the dual, are you satisfied with the pump up times? Anyway, how did you route the harness from under the passenger seat to the battery? Through the floor or along the inside? Did you connect the purple ARB wire to an AUX switch and which AUX. How thick is your mounting plate?

I really like the under seat location and just don't think I need a dual ARB compressor.

THANKS!!! Paul


Famof5jeep

Member
First Name
Kevin
Joined
Oct 21, 2019
Messages
11
Reaction score
9
Location
MA
Vehicle(s)
JK
Very interested in your setup...It looks like you used the single ARB and not the dual, are you satisfied with the pump up times? Anyway, how did you route the harness from under the passenger seat to the battery? Through the floor or along the inside? Did you connect the purple ARB wire to an AUX switch and which AUX. How thick is your mounting plate?

I really like the under seat location and just don't think I need a dual ARB compressor.

THANKS!!! Paul
Following, interested as well.

OP
OP
CDwest7254

CDwest7254

Active Member
First Name
Chris
Joined
Jul 6, 2019
Messages
29
Reaction score
29
Location
Wisconsin
Vehicle(s)
2019 Wrangler Moab Edition
Vehicle Showcase
1
Very interested in your setup...It looks like you used the single ARB and not the dual, are you satisfied with the pump up times? Anyway, how did you route the harness from under the passenger seat to the battery? Through the floor or along the inside? Did you connect the purple ARB wire to an AUX switch and which AUX. How thick is your mounting plate?

I really like the under seat location and just don't think I need a dual ARB compressor.

THANKS!!! Paul
Paul,
No issues with air time (extra 45-60 seconds wasn’t worth the extra dollars). Related to routing, I routed directly under the carpet (under the seat) to the side trim (at base of the door) then up to and through the firewall. I put a protective sleeve on the harness and forced it through the existing main harness that goes through the firewall. From that point I had to extend the battery wires but the auxiliary wire length is fine

For the bracket, I used .062” thick aluminum

OP
OP
CDwest7254

CDwest7254

Active Member
First Name
Chris
Joined
Jul 6, 2019
Messages
29
Reaction score
29
Location
Wisconsin
Vehicle(s)
2019 Wrangler Moab Edition
Vehicle Showcase
1
Following, interested as well.
One more thing Paul, I would have to go back and remember what color I connected, but I have a JL so the auxiliary switches were already wired all I needed to do was to connect the ARB auxiliary wire to the factory wiring for auxiliary switches


Plongson

Well-Known Member
First Name
Paul
Joined
May 8, 2020
Messages
248
Reaction score
272
Location
So. Utah
Vehicle(s)
2020 Wrangler Rubicon JL Diesel, 1984 Jeep Cherokee XJ
Occupation
Retired engineer and business owner. Vibration analyst, reliability specialist.
Vehicle Showcase
1
Awsome!! Thanks for the feedback. I'll let you know how it goes...

OP
OP
CDwest7254

CDwest7254

Active Member
First Name
Chris
Joined
Jul 6, 2019
Messages
29
Reaction score
29
Location
Wisconsin
Vehicle(s)
2019 Wrangler Moab Edition
Vehicle Showcase
1
Awsome!! Thanks for the feedback. I'll let you know how it goes...
If you want to talk live at some point, let me know and I can be available. some of this is easier to talk about than type instructions


jeepnewbie

Well-Known Member
First Name
Brian
Joined
Jul 27, 2018
Messages
80
Reaction score
112
Location
Raleigh, NC
Vehicle(s)
18' JLU Wrangler Sport S, 08' Toyota Tacoma
Occupation
GE Aviation
Vehicle Showcase
1
I’m about to purchase an ARB single and mount it like this guy recommends. Seems like a great place to me. Yeah it’ll get dirty but who cares, so does everything else under there.


IronScott

Well-Known Member
First Name
Scott
Joined
Sep 21, 2018
Messages
1,002
Reaction score
1,167
Location
NW Arkansas
Vehicle(s)
2019 JLU Sahara, 1992 Jeep YJ, 2002 Chevy Silverado
I’m about to purchase an ARB single and mount it like this guy recommends. Seems like a great place to me. Yeah it’ll get dirty but who cares, so does everything else under there.
This spot won’t work with the 2.0, at least I couldn’t see how. It’s a great option for the 3.6. I did something similar to @CDwest7254 but his looks much better. I used this as an opportunity to weld some steel together to make a mount. It’s ugly but functional.

Worst part was dealing with the crazy wiring bundle and getting wires through the firewall. I may install a rear air locker in the future so I decided to keep all the locker wiring options, so I just taped up all the unused connections and tucked them away for the future.

If you never plan on air lockers I would cut all that stuff out and really simplify the wires. @Jeep Generation has a great video showing how he did this, though his is slightly different because he has the dual. Reading some of the ARB threads on here can be confusing because the wire colors are different between the single and dual.

I’m just glad mine is done. I’ve had it for weeks and was dreading the install.


SmoothJeepOperator

Well-Known Member
Joined
Aug 31, 2018
Messages
348
Reaction score
230
Location
Richmond VA
Vehicle(s)
2018 JLU Wrangler Sport
I’m about to purchase an ARB single and mount it like this guy recommends. Seems like a great place to me. Yeah it’ll get dirty but who cares, so does everything else under there.
Excuse my ignorance. Does removing that engine cover pose any risk? If i had engine problems for some odd reason would Jeep be like yea... you took the cover off?


JeepSmash

Well-Known Member
Joined
Mar 17, 2018
Messages
771
Reaction score
719
Location
San Diego
Vehicle(s)
2019 Rubicon Unlimited
Excuse my ignorance. Does removing that engine cover pose any risk? If i had engine problems for some odd reason would Jeep be like yea... you took the cover off?
No it's a cosmetic cover and add's a little bit of insulation to keep noise down. Doesn't have any effect on the engines function.


dspilman

Well-Known Member
First Name
Dan
Joined
Dec 23, 2018
Messages
308
Reaction score
666
Location
Los Angeles, CA
Vehicle(s)
2019 JL Rubicon 2-Door 3.6L Manual, 1997 TJ Sport 2-Door 4.0L Manual;
Occupation
Architect
Curious if anyone else has tried the under hood mounting option for the single ARB?
Looking for a good under-hood location for the single compressor.


dspilman

Well-Known Member
First Name
Dan
Joined
Dec 23, 2018
Messages
308
Reaction score
666
Location
Los Angeles, CA
Vehicle(s)
2019 JL Rubicon 2-Door 3.6L Manual, 1997 TJ Sport 2-Door 4.0L Manual;
Occupation
Architect
@CDwest7254 - did you end up powder coating your bracket yet?
Would you considering fabricating another? Will pay for time + material since you did the work of figuring it out! Let me know, thanks!


JeepSmash

Well-Known Member
Joined
Mar 17, 2018
Messages
771
Reaction score
719
Location
San Diego
Vehicle(s)
2019 Rubicon Unlimited
Curious if anyone else has tried the under hood mounting option for the single ARB?
Looking for a good under-hood location for the single compressor.
I tried it. It works but it’s VERY close to touching the hood liner. Probably not an issue though. I ended up going with the fender mount only because I wanted the connection outside of the engine bay and didn’t feel like running it from above the engine.

OP
OP
CDwest7254

CDwest7254

Active Member
First Name
Chris
Joined
Jul 6, 2019
Messages
29
Reaction score
29
Location
Wisconsin
Vehicle(s)
2019 Wrangler Moab Edition
Vehicle Showcase
1
@CDwest7254 - did you end up powder coating your bracket yet?
Would you considering fabricating another? Will pay for time + material since you did the work of figuring it out! Let me know, thanks!
Not yet...it cost me $100 to get it done (local shop). I drew it up and he made it for me so cost was labor and material. Let me know
