Anyone install ball mount above mirror?

bwilson109

Member
First Name
Byron
Joined
May 15, 2019
Messages
14
Reaction score
14
Location
Katy, TX
Vehicle(s)
2018 JLUR

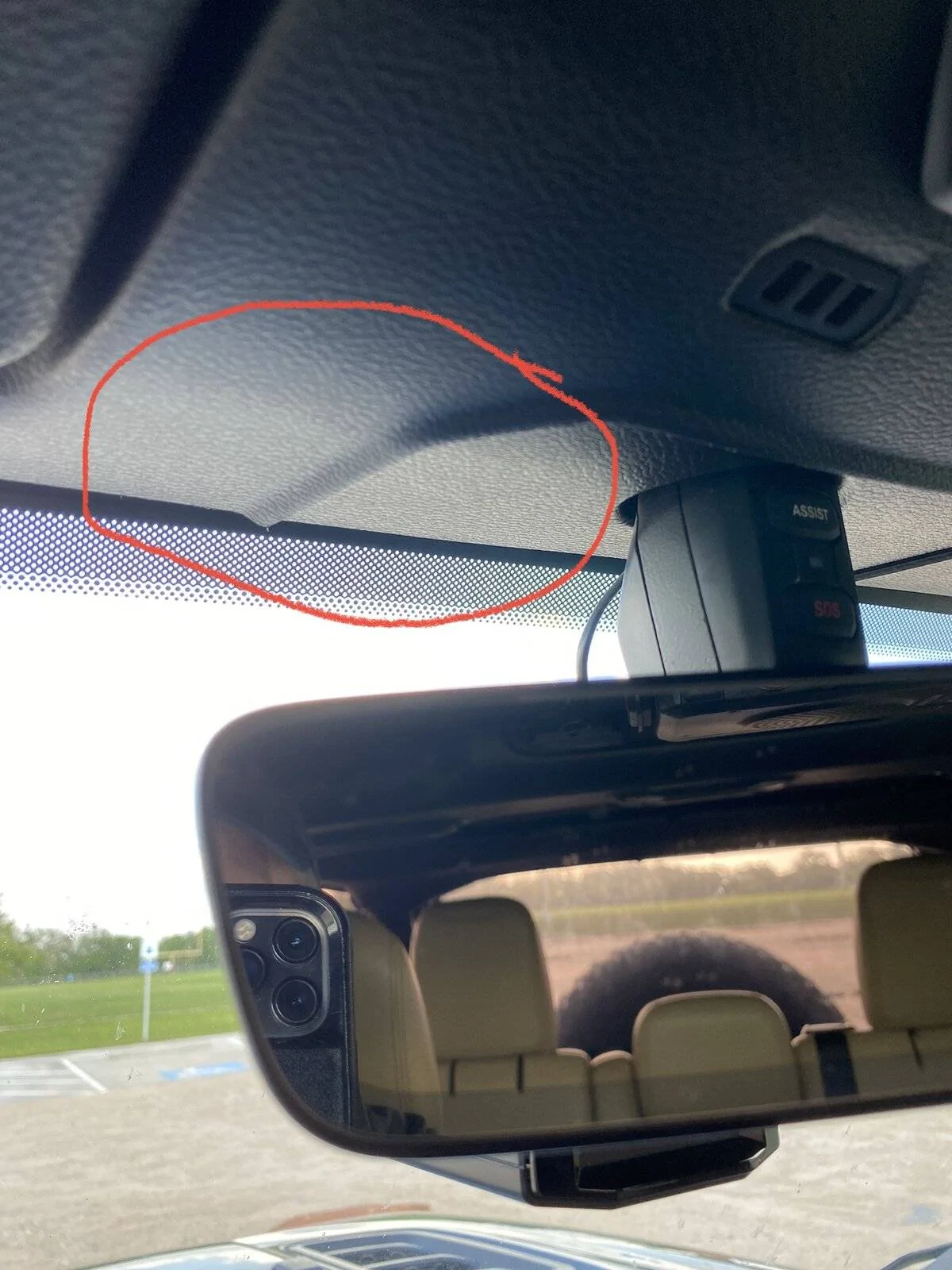

Has anyone installed a Ram ball in this general vicinity? I run a radar detector with a windshield suction mount, but it falls off about every 6 weeks or so. Thinking about how I can mount it with a 67designs or a Ram arm. Lots of pics for dash-mounted balls, but I need to mount from above. I also like to put the windshield down from time to time, so this would solve that problem too. TIA
Advertisement



LittleDog

Well-Known Member
Joined
Jan 16, 2020
Messages
504
Reaction score
605
Location
New Jersey
Vehicle(s)
2020 Sahara JLU
Has anyone installed a Ram ball in this general vicinity? I run a radar detector with a windshield suction mount, but it falls off about every 6 weeks or so. Thinking about how I can mount it with a 67designs or a Ram arm. Lots of pics for dash-mounted balls, but I need to mount from above. I also like to put the windshield down from time to time, so this would solve that problem too. TIA
I have not, but this is a good idea, so I might in the future.

I'd use a ram t-slot ball after removing the panel and drilling a hole.

There are write-ups on how to remove the panel on the forum. Check the ones where people accidentally pulled off the entire mirror.


Hotchyy

Well-Known Member
First Name
Romeo
Joined
Aug 7, 2020
Messages
77
Reaction score
41
Location
Tampa, Florida
Vehicle(s)
2020 Jeep JLU
Occupation
Parks & Rec
Also check out Arkon for mounting stuff, cheaper and better then the Ram stuff in my opinion.


Down South

Well-Known Member
First Name
Sam
Joined
Apr 13, 2021
Messages
90
Reaction score
71
Location
Louisiana
Vehicle(s)
2020 JLUR
Velcro?
I mounted a Garmin RV 890 GPS on my motorhome dash with it and it does well. The 890 is pretty big and heavy.
I don't know if that would place your radar detector too high or not. Just an idea.


ToolMan514

Well-Known Member
First Name
Tim
Joined
Mar 2, 2018
Messages
687
Reaction score
1,155
Location
Montréal, Québec, Canada
Vehicle(s)
'18 Rubicon Unlimited
Vehicle Showcase
1
If you pull off those panels, you'll find 2x 6mm studs hanging down that might help with stability. I believe their purpose is to affix the advanced-safety group cameras. I am using the driver's side one for a metal plate that my dash cam is taped to. I was already thinking of doing something with the other side to add a RAM ball...

OP
OP
bwilson109

bwilson109

Member
First Name
Byron
Joined
May 15, 2019
Messages
14
Reaction score
14
Location
Katy, TX
Vehicle(s)
2018 JLUR
If you pull off those panels, you'll find 2x 6mm studs hanging down that might help with stability. I believe their purpose is to affix the advanced-safety group cameras. I am using the driver's side one for a metal plate that my dash cam is taped to. I was already thinking of doing something with the other side to add a RAM ball...
Great advice here, thanks. I used 2 M6 hex nuts and an M6 hex coupler on the left side post, drilled a small hole through the plastic panel, and now I have a spot to attach a 1" ball. Just waiting for the parts to arrive. I'll add photos once it's done.

OP
OP
bwilson109

bwilson109

Member
First Name
Byron
Joined
May 15, 2019
Messages
14
Reaction score
14
Location
Katy, TX
Vehicle(s)
2018 JLUR
OP
OP
bwilson109

bwilson109

Member
First Name
Byron
Joined
May 15, 2019
Messages
14
Reaction score
14
Location
Katy, TX
Vehicle(s)
2018 JLUR

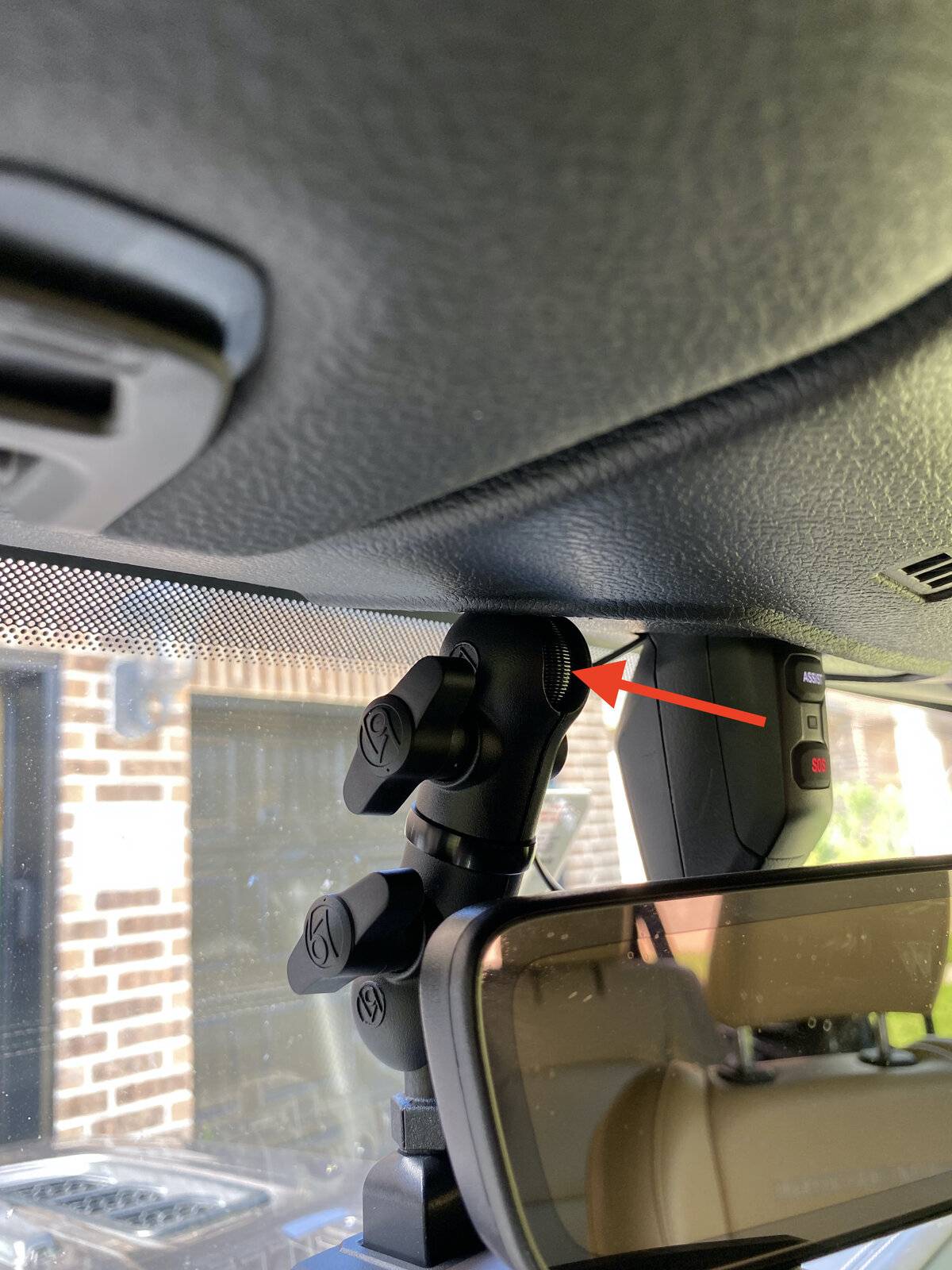

So I finished the install and wanted to provide links to the stuff I bought in case anyone was interested.

Video showing how to access the M6 stud above the mirror: Ram ball with M6 stud (for mounting to Jeep): https://www.rammount.com/part/RAP-B-379U-M616
Ram ball with 1/4-20 stud (for mounting to detector): https://www.rammount.com/part/RAP-B-379U-252025
Magnetic detector holder with 1/4-20 threads: https://www.ebay.com/itm/124030925360
Additional bracket for M1 camera (optional): https://www.ebay.com/itm/124275216690
67Designs mounting arm (nano size): https://www.67d.com/products/carbon-fiber-arms-for-ram-mounts-setups-matte
Power cord: http://invisicord.com/store.html#!/Escort-V1-Bel-Invisicords/p/304722580/category=0

Did it solve the problem of the detector's suction cup failing every 5 weeks: YES
Did it cost way more than I expected: YES
Was it worth it: OF COURSE


FrostQ

Well-Known Member
Joined
May 31, 2020
Messages
82
Reaction score
99
Location
Canada
Vehicle(s)
Rubicon
Vehicle Showcase
1
Thanks for the vid about pulling off the top panels.
Is there enough power in the wires going into the mirror to power a dash cam? Anything I should check before attempting this?

OP
OP
bwilson109

bwilson109

Member
First Name
Byron
Joined
May 15, 2019
Messages
14
Reaction score
14
Location
Katy, TX
Vehicle(s)
2018 JLUR
Thanks for the vid about pulling off the top panels.
Is there enough power in the wires going into the mirror to power a dash cam? Anything I should check before attempting this?
If you have the powered mirror, you can tap in and get a 12V feed. The pink wire is the positive, and the black wire is the negative. This should run your dash cam just fine.
