Antenna mount using Mopar Reinforcement bracket

aCeMedic13

Well-Known Member
First Name
Ambrose
Joined
Dec 29, 2017
Threads
9
Messages
197
Reaction score
559
Location
San Antonio, Texas
Vehicle(s)
2018 Jeep Wrangler JLU Rubicon
Occupation
RN/Paramedic
Vehicle Showcase
1

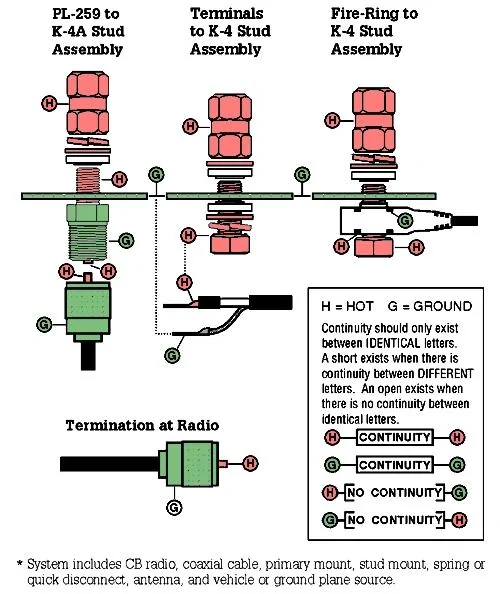

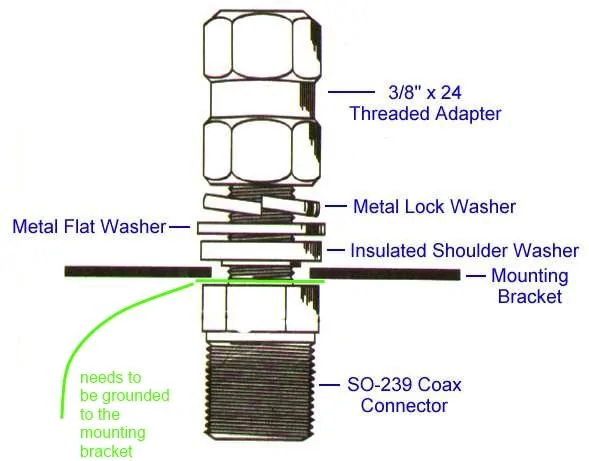

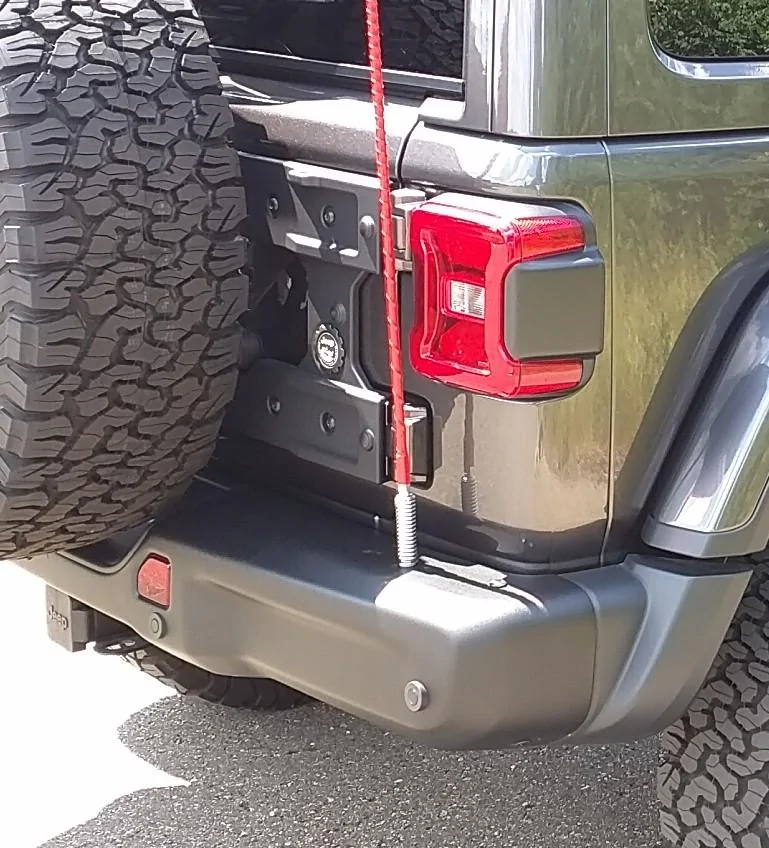

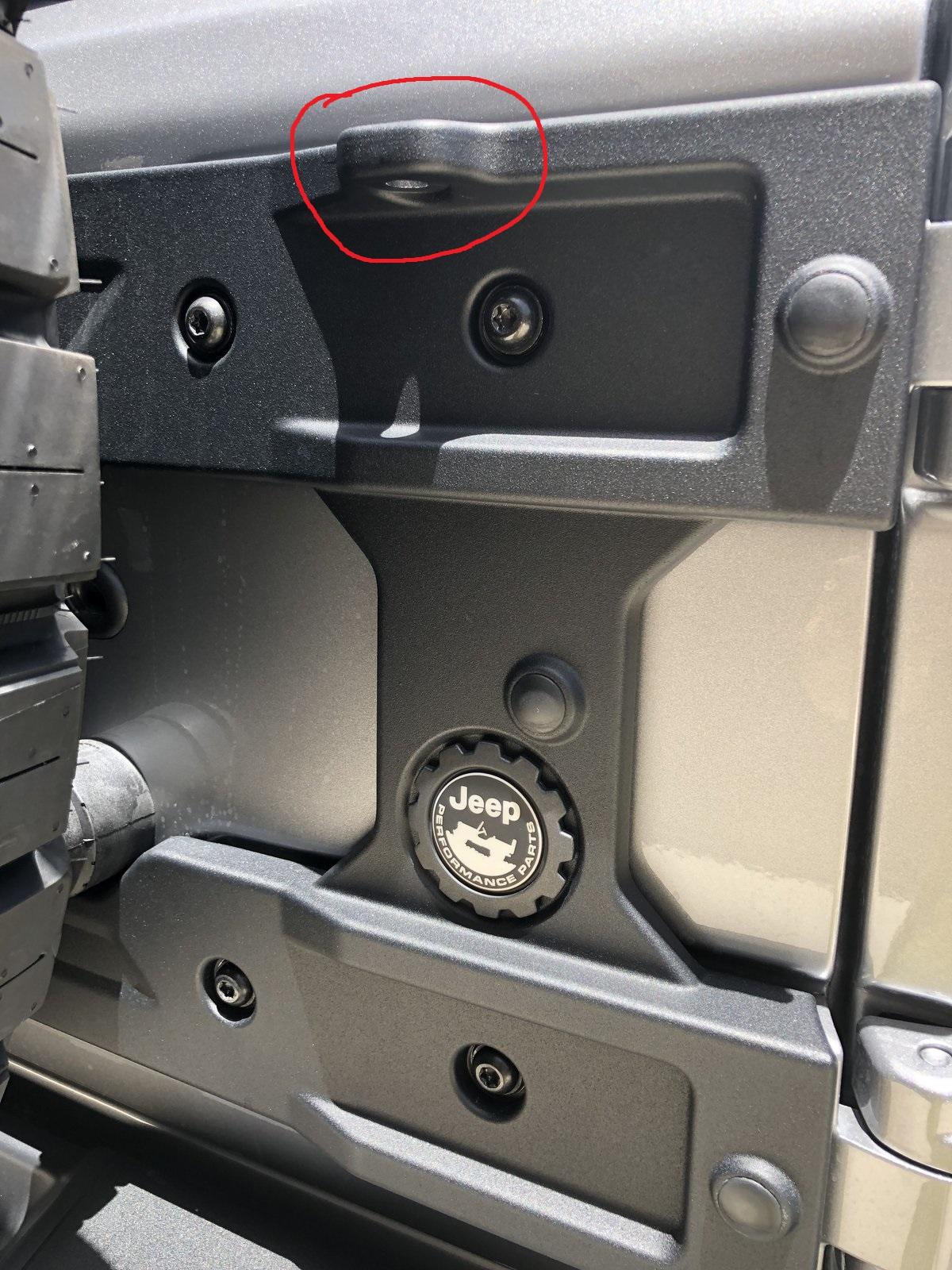

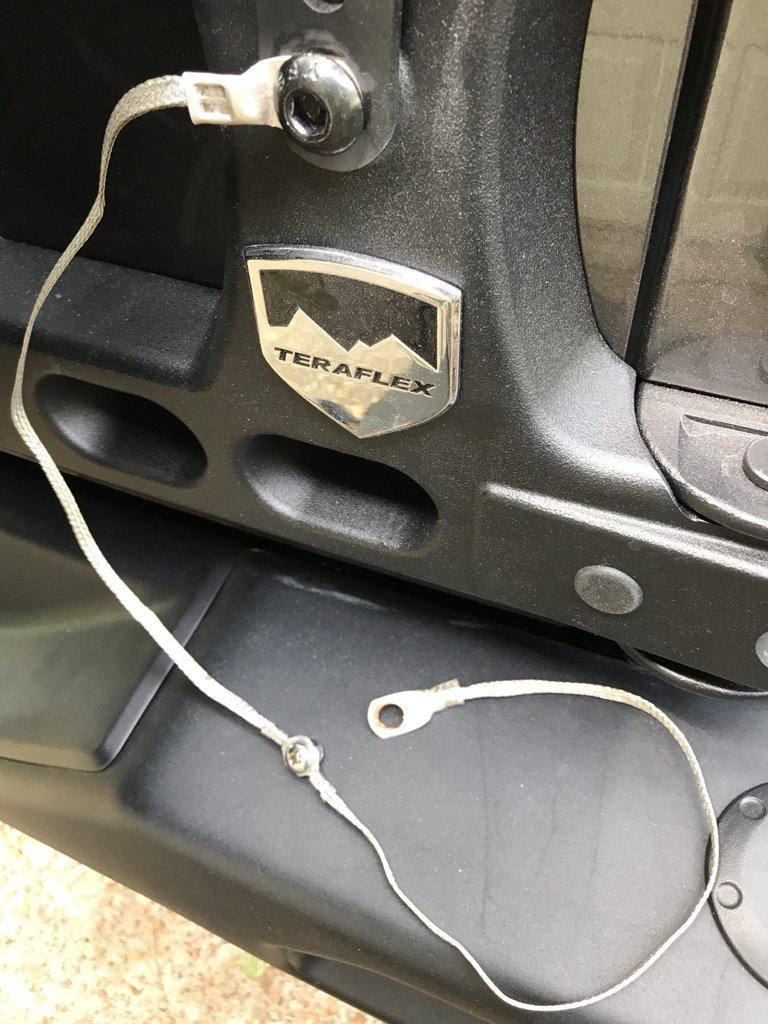

Anybody have a setup with the reinforcement bracket utilizing the 1/2 in. hole? I've ordered some stuff and will be attempting soon. Also looking for suggestions to ground the antenna with this method. My thoughts are to sand away some of the powder coat on the bottom of the bracket hole where the bolt makes contact (and utilize the bracket as a ground). OR run a grounding strap (going to have to be pretty long) in through the tailgate along with the coax to a bolt somewhere in the back tub or rear side to get to the frame.







Sponsored



bryan

Well-Known Member
First Name
Bryan
Joined
Jun 20, 2018
Threads
1
Messages
145
Reaction score
121
Location
Utah
Vehicle(s)
Mini, F250, Forester, 2019 JLUR
Vehicle Showcase
1
More than just grounding the antenna, you'll want to do extensive bonding between the reinforced hinge, the tailgate, the rest of the body, the frame, etc.

For a technical overview, read this: http://www.k0bg.com/bonding.html

Let us know how it works!


JLURnoob

Well-Known Member
First Name
Jeff
Joined
May 28, 2018
Threads
2
Messages
65
Reaction score
191
Location
Detroit Metro Area
Vehicle(s)
2018 JLUR
Occupation
SHAP Electrician
Vehicle Showcase
1
I looked at this spot for a viable antenna mounting point but the tab on the bracket is too thick. All of the Firestick mounts I could find would not work with that much metal. Too hard to countersink it with hand tools and still make it look good. So I went old school with mine, solid, already grounded, and when someone comes up with a better solution all I need is a 1/2" press in plug.


OP
OP
aCeMedic13

aCeMedic13

Well-Known Member
First Name
Ambrose
Joined
Dec 29, 2017
Threads
9
Messages
197
Reaction score
559
Location
San Antonio, Texas
Vehicle(s)
2018 Jeep Wrangler JLU Rubicon
Occupation
RN/Paramedic
Vehicle Showcase
1
I looked at this spot for a viable antenna mounting point but the tab on the bracket is too thick. All of the Firestick mounts I could find would not work with that much metal. Too hard to countersink it with hand tools and still make it look good. So I went old school with mine, solid, already grounded, and when someone comes up with a better solution all I need is a 1/2" press in plug.


Ugh. Not what I was hoping for. I ended up ordering a cool tech mount.


DickZip

Well-Known Member
Joined
Mar 13, 2018
Threads
26
Messages
352
Reaction score
420
Location
S/w Florida
Vehicle(s)
2018 Jeep Jl Rubicon
I looked at this spot for a viable antenna mounting point but the tab on the bracket is too thick. All of the Firestick mounts I could find would not work with that much metal. Too hard to countersink it with hand tools and still make it look good. So I went old school with mine, solid, already grounded, and when someone comes up with a better solution all I need is a 1/2" press in plug.

There has got to be a way to make that mounting point work, it's to nice and it cost a small fortune.


Sponsored

JLURnoob

Well-Known Member
First Name
Jeff
Joined
May 28, 2018
Threads
2
Messages
65
Reaction score
191
Location
Detroit Metro Area
Vehicle(s)
2018 JLUR
Occupation
SHAP Electrician
Vehicle Showcase
1
There has got to be a way to make that mounting point work, it's to nice and it cost a small fortune.
About 2 days after I did this a guy in another post bought a longer bolt and made the reinforcement bracket work. He even posted the part number from home depot. Seek and ye shall find.


DBROKL

Well-Known Member
First Name
Brock
Joined
Jun 1, 2018
Threads
6
Messages
125
Reaction score
44
Location
Nokesville, Va
Vehicle(s)
2018 JLUR
About 2 days after I did this a guy in another post bought a longer bolt and made the reinforcement bracket work. He even posted the part number from home depot. Seek and ye shall find.
I just swapped out for a slightly longer bolt. Works fine


IronScott

Well-Known Member
First Name
Scott
Joined
Sep 21, 2018
Threads
32
Messages
1,007
Reaction score
1,204
Location
NW Arkansas
Vehicle(s)
2019 JLU Sahara, 1992 Jeep YJ, 2002 Chevy Silverado
Sorry to bump a very old thread but I have the MOPAR reinforcement kit and want to mount a Firestik to it. I ordered this (https://www.amazon.com/gp/product/B0002HRBSU/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&psc=1) but the post is not long enough to get through the hole on the reinforcement kit. I’ve looked for versions of the mounting stud that are longer but haven’t found anything. I don’t want to drill the mount location but I don’t have any other options right now. The mounting hole on this kit is stupidly thick for no apparent reason other than aesthetics.


cdq34

Member
First Name
Curt
Joined
Jul 22, 2018
Threads
0
Messages
14
Reaction score
24
Location
Alabama
Vehicle(s)
2018 JLUR, 2011 JKUR
Sorry to bump a very old thread but I have the MOPAR reinforcement kit and want to mount a Firestik to it. I ordered this (https://www.amazon.com/gp/product/B0002HRBSU/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&psc=1) but the post is not long enough to get through the hole on the reinforcement kit. I’ve looked for versions of the mounting stud that are longer but haven’t found anything. I don’t want to drill the mount location but I don’t have any other options right now. The mounting hole on this kit is stupidly thick for no apparent reason other than aesthetics.
https://www.jlwranglerforums.com/fo...ement-and-cb-antenna-mount.18719/#post-458815
Read this thread and then let me know if you have any more questions. This worked for me. I believe the mounting hole is that thick for strength because it is cast aluminum to keep the weight down?


IronScott

Well-Known Member
First Name
Scott
Joined
Sep 21, 2018
Threads
32
Messages
1,007
Reaction score
1,204
Location
NW Arkansas
Vehicle(s)
2019 JLU Sahara, 1992 Jeep YJ, 2002 Chevy Silverado

Sponsored

IronScott

Well-Known Member
First Name
Scott
Joined
Sep 21, 2018
Threads
32
Messages
1,007
Reaction score
1,204
Location
NW Arkansas
Vehicle(s)
2019 JLU Sahara, 1992 Jeep YJ, 2002 Chevy Silverado

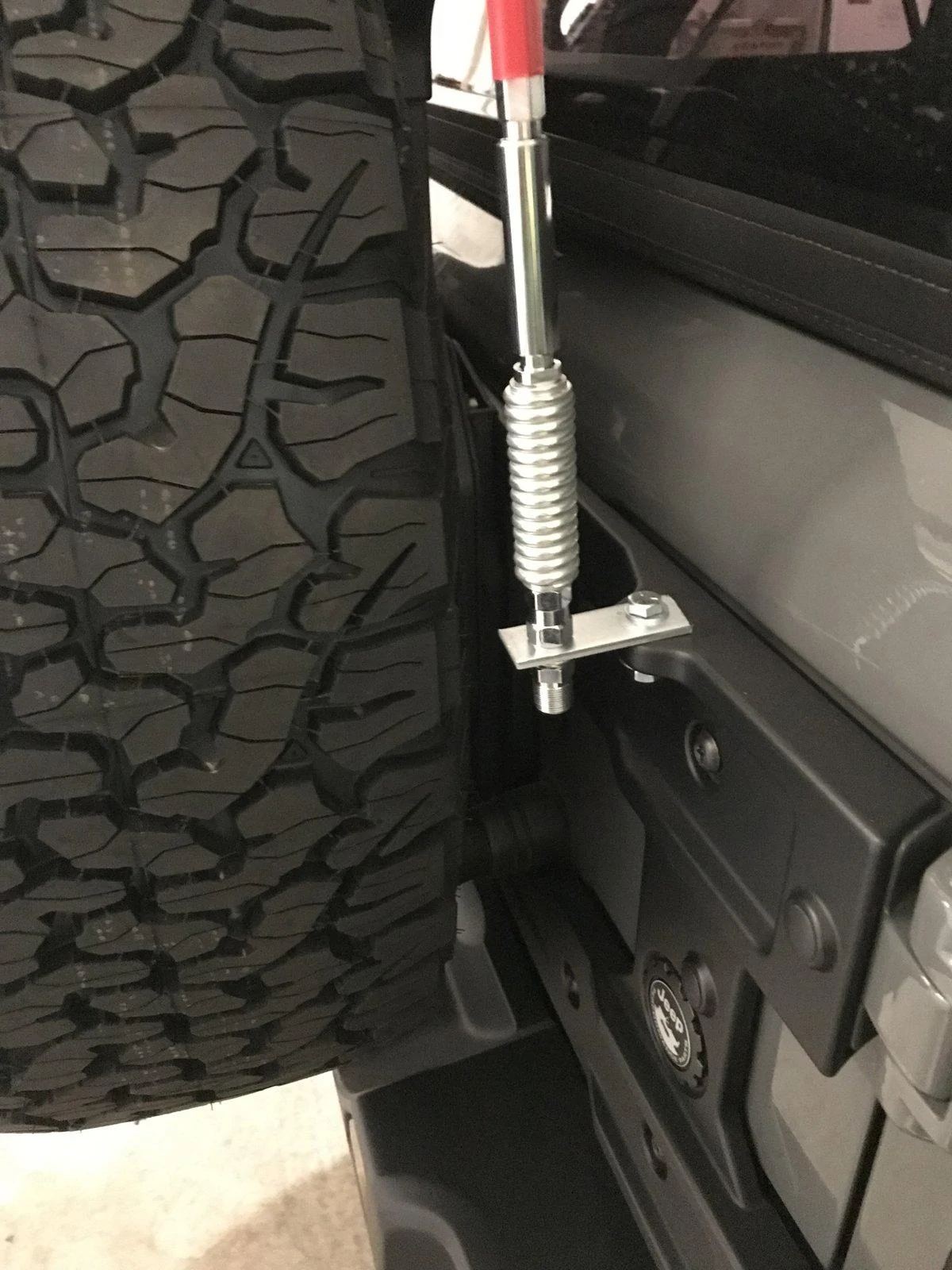

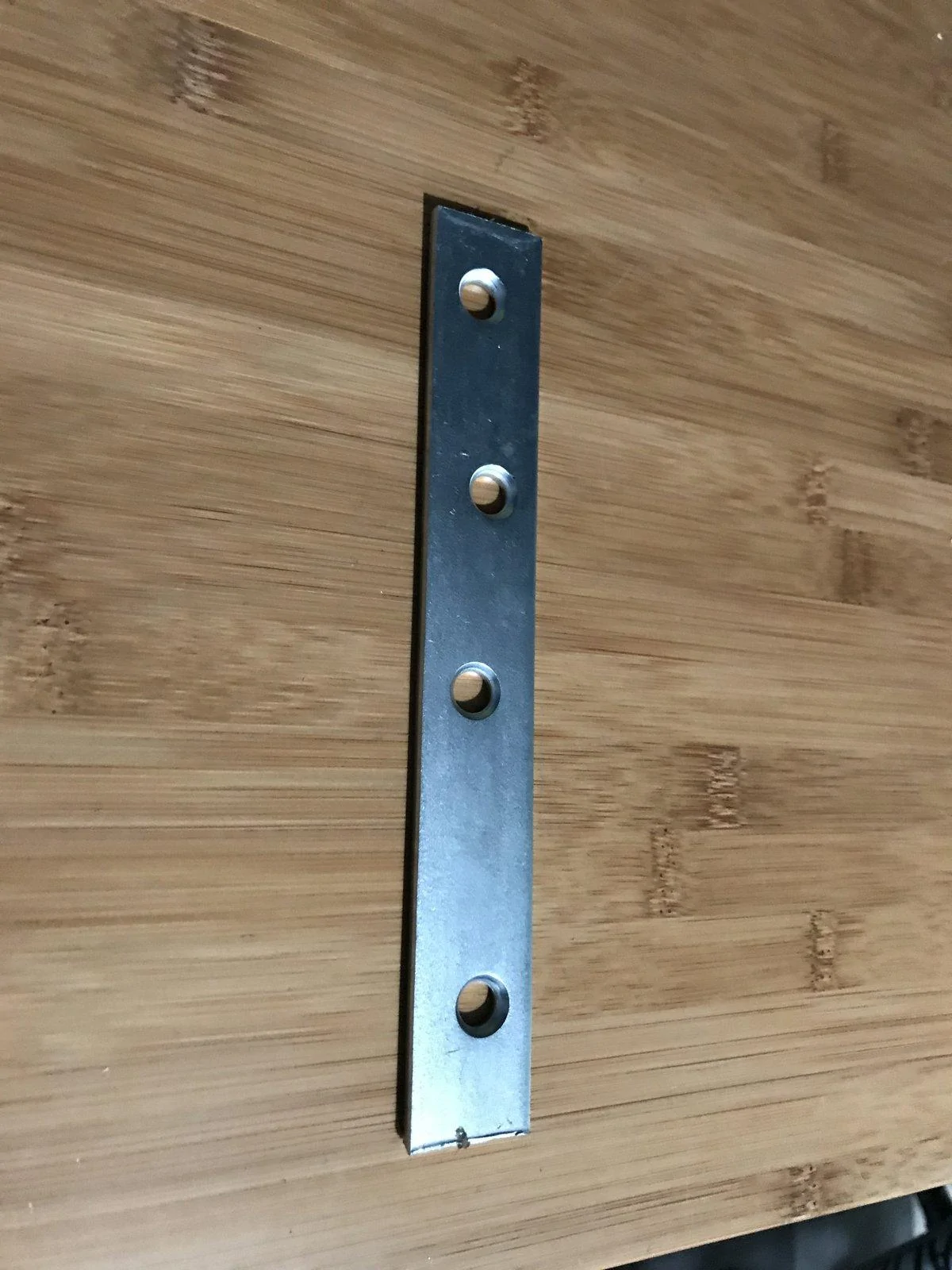

I had already bought a cable and wasn’t ready to buy a new one just for this mount since I’ll only use it on trail rides, so I bought a piece of metal strap from Lowe’s and drilled out the hole a bit to fit the antenna, cut it to size and attached it to the tailgate reinforcement. I need to clean it up, round the edges and paint the top black but I think it will work for now. Cost was a little over $2.
