Another FTM-400 Ham Radio Install - Pic heavy

Bilymac

Well-Known Member
First Name
Bill
Joined
Oct 23, 2018
Messages
302
Reaction score
173
Location
Auburn, CA
Vehicle(s)
2006 Ram 2500, 2017 Chevy Tahoe, 2017 Harley Street Glide Special, 2019 Jeep JLRU
Started by puling the right-front fender. It really makes accessing the passenger-side grommet in the firewall a breeze. In addition to the power wires, I also ran another short section of wire, just in case I install something in the future.

I pre-purchased the little white fender clips, and I'm glad I did. 3 of the originals broke in the removal process. Even so, removal/re-installation is a snap.

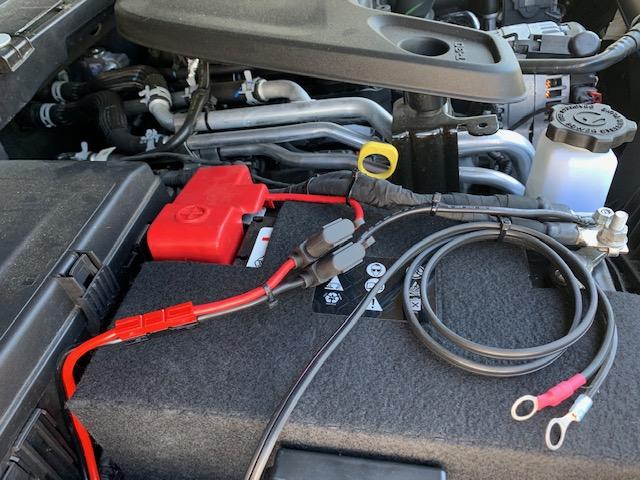

Power comes directly from the battery, via a Powerwerx harness, and Power Pole connectors. The Powerwerx harness has fuse holders on both the pos & neg wires. (The other harness is for an RVi Toad Battery Charger).

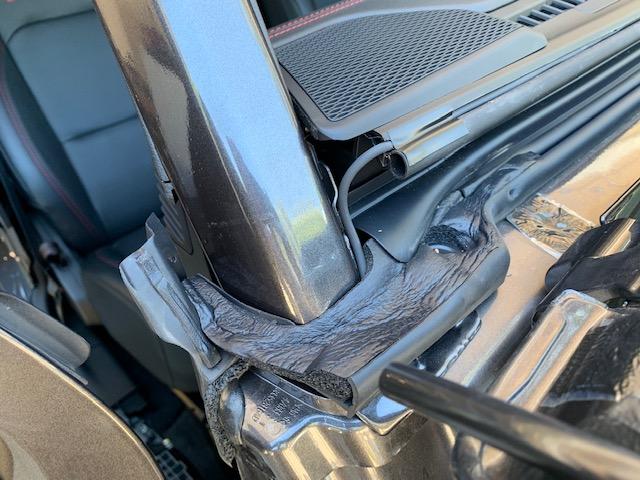

I folded the windshield, and ran the Controller cable through the weatherstripping, to access above the dash, then into the kick panel area of the passenger-side footwell.

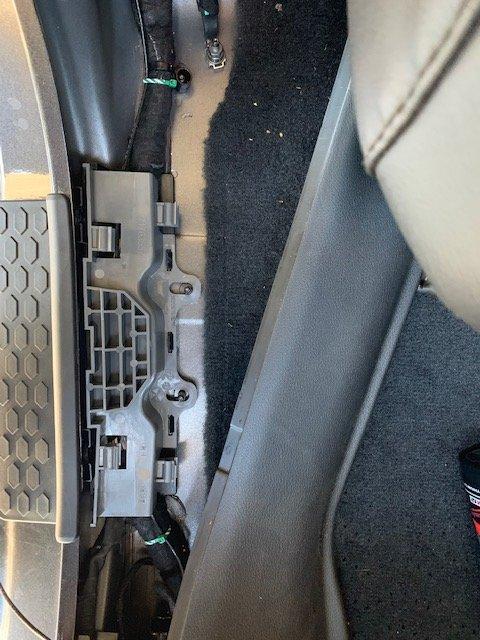

I then ran the power wire and Controller wire along existing wire bundles, to terminate under the passenger front seat.

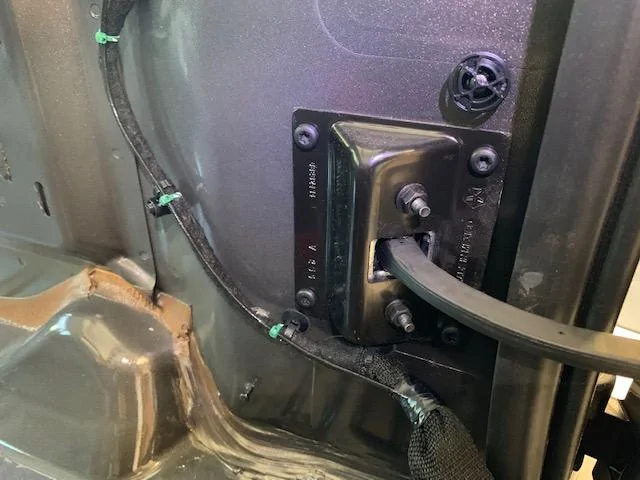

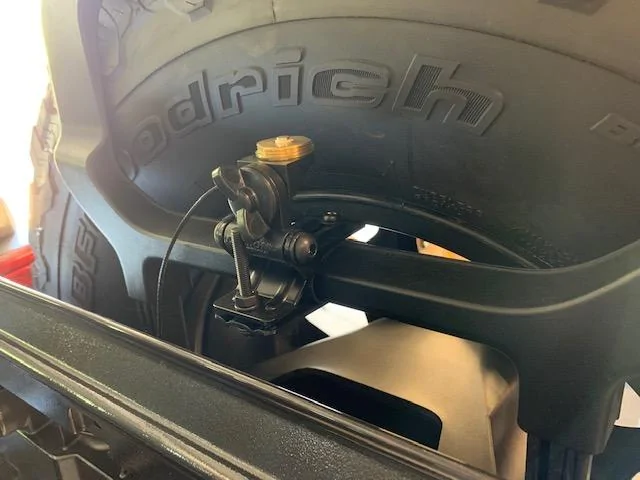

I mounted a Diamond Antenna via a Diamond Mount to the spare tire carrier, running the coax through a grommet in the rear tailgate. The coax then followes existing wire bundles to the passenger front seat.

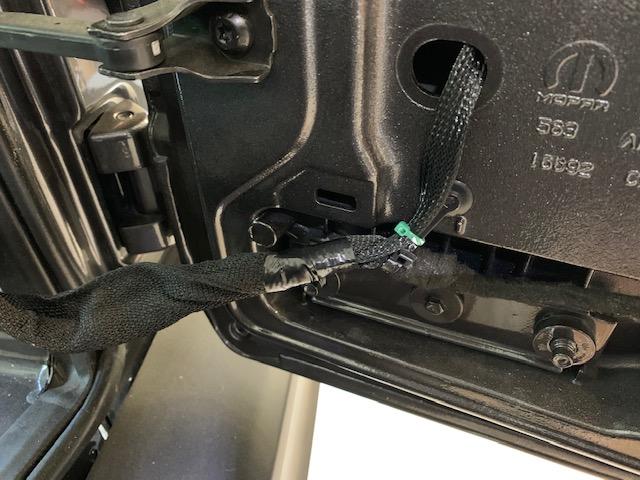

I added a little braided sheathing here to protect the coax, then ran it into the existing protective sheathing of the tailgate wiring.




I mounted the Transceiver to a thick rubber flooring material, using the stock Yaesu mount. The rubber is dense/heavy, and the texture keeps it from sliding on the carpet.
I usually run a little warm, even during the winter, so I always like a little cool air blowing. Since the Transceiver is adjacent to the vent, I hope air flow won't be an issue.
(The blue towels are just protecting the carpet from the front seat fame. I removed the 4 frame bolts, and tilted the seat back for better access).

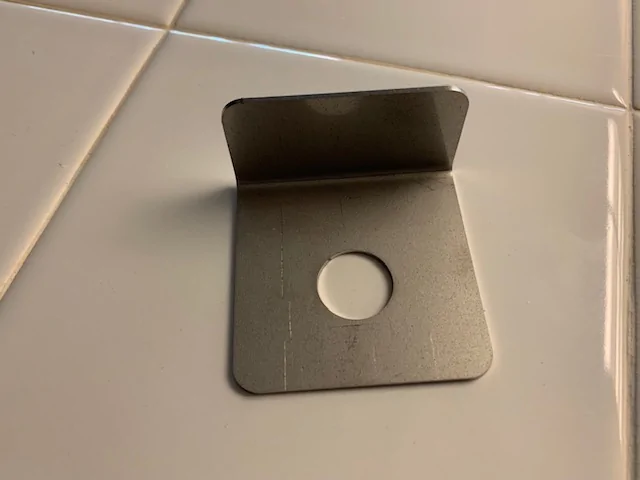

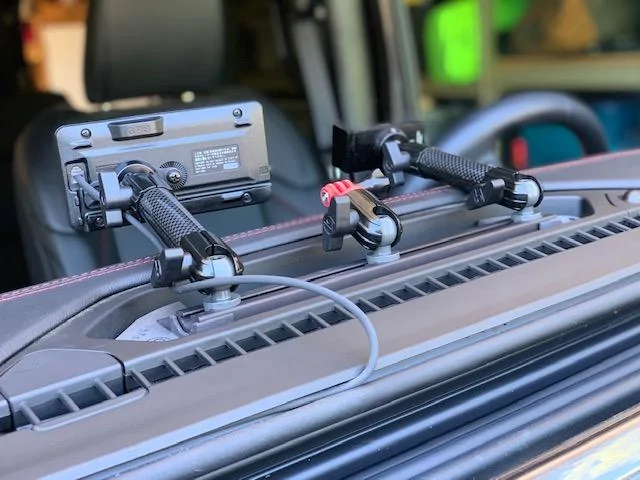

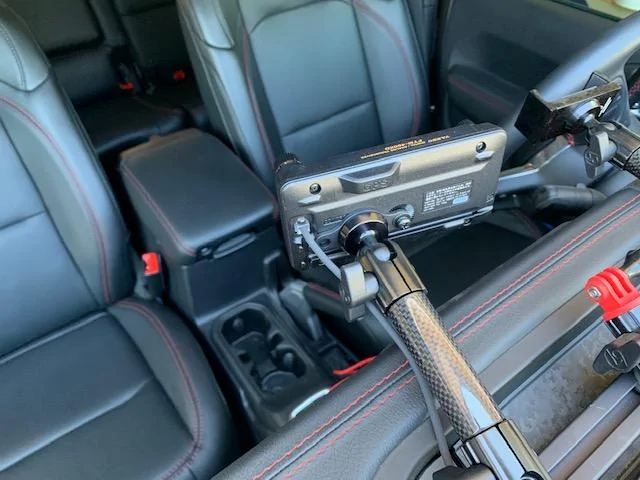

The Controller is mounted using an adapted 67 Designs mount.


Everything is working okay so far. Haven't taken any SWR reading yet. I also have a mount that @Bobby Boucher made for me. I'll do a little testing with different antenna placements in the future.
Advertisement


OP
OP

Bilymac

Well-Known Member
First Name
Bill
Joined
Oct 23, 2018
Messages
302
Reaction score
173
Location
Auburn, CA
Vehicle(s)
2006 Ram 2500, 2017 Chevy Tahoe, 2017 Harley Street Glide Special, 2019 Jeep JLRU
Did you use 14 AWG - Trying to figure out my own and feel like 14 will be what works best.
I went overboard and used 10 AWG. The Powerwerx Fuse Holder I bought was 10, so I figured i'd use the same gauge all the way to the Transceiver.

Bill


PhoenixM3

Well-Known Member
Joined
Oct 28, 2017
Messages
137
Reaction score
136
Location
Colorado
Vehicle(s)
2013 GT500 and 2015 Fiesta ST
Very nicely done! Pictures with embedded text really help people who'd like to perform a similar installation......

Last edited by a moderator:

mbinzayed

Member
First Name
Mohammad
Joined
Aug 16, 2019
Messages
18
Reaction score
21
Location
United Arab Emirates-Dubai
Vehicle(s)
Jeep Wrangler JL 2019
Helpful thred,

any recommendation on how many gauges I should go with for my 50w ICOM radio?

OP
OP

Bilymac

Well-Known Member
First Name
Bill
Joined
Oct 23, 2018
Messages
302
Reaction score
173
Location
Auburn, CA
Vehicle(s)
2006 Ram 2500, 2017 Chevy Tahoe, 2017 Harley Street Glide Special, 2019 Jeep JLRU
I have read that 14AWG is a minimum.


StinGray Rubi

Member
First Name
Coy
Joined
Aug 19, 2019
Messages
12
Reaction score
0
Location
Houston, TX
Vehicle(s)
2019 JLUR
What is the dash mount called that you are using for your phone? That's the nicest one that I have seen yet!

OP
OP

Bilymac

Well-Known Member
First Name
Bill
Joined
Oct 23, 2018
Messages
302
Reaction score
173
Location
Auburn, CA
Vehicle(s)
2006 Ram 2500, 2017 Chevy Tahoe, 2017 Harley Street Glide Special, 2019 Jeep JLRU
What is the dash mount called that you are using for your phone? That's the nicest one that I have seen yet!
The whole system is by 67Designs. Phone holder near the driver, GoPro mount in the middle, and Ham Radio control head on the passenger side.


tanner

Member
First Name
Tanner
Joined
Mar 29, 2019
Messages
15
Reaction score
8
Location
Scottsdale, AZ
Vehicle(s)
2019 JLUR 2.0L
Clean install!
  • Where did you mount your mic? Any pics of this?
  • Did you mount an external speaker?

OP
OP

Bilymac

Well-Known Member
First Name
Bill
Joined
Oct 23, 2018
Messages
302
Reaction score
173
Location
Auburn, CA
Vehicle(s)
2006 Ram 2500, 2017 Chevy Tahoe, 2017 Harley Street Glide Special, 2019 Jeep JLRU
I have yet to decide on a permanent location for either my Mic or my external speaker. I bought the Mic extension, so it will go pretty much anywhere, once I can make up my mind. Right now it lives in the cup holder.

Bill


apettit7

Well-Known Member
First Name
Alan
Joined
Dec 23, 2017
Messages
165
Reaction score
164
Location
Washington
Vehicle(s)
Honda Element
Occupation
IT
Great write-up and pics! Do you have the link for the white fender clips?


jeepdriver99

Well-Known Member
First Name
JD
Joined
Jan 27, 2018
Messages
177
Reaction score
130
Location
Central Ohio
Vehicle(s)
18 JLR 2 Door, 21 JLU TD, 06 GC, 54 Willys SW
Occupation
Retired, W8BWD
I have yet to decide on a permanent location for either my Mic or my external speaker. I bought the Mic extension, so it will go pretty much anywhere, once I can make up my mind. Right now it lives in the cup holder.

Bill
I used a Magnetic Mic to mount mine on the console. It gives me easy access without taking my eyes off the road or trail.





mbinzayed

Member
First Name
Mohammad
Joined
Aug 16, 2019
Messages
18
Reaction score
21
Location
United Arab Emirates-Dubai
Vehicle(s)
Jeep Wrangler JL 2019
Great work ...

Any ideas for mounting Radio's Control Panels, I am looking for a solution without any drilling ... and looks nice ...


Cali-JeepJL

Well-Known Member
First Name
Rowan
Joined
Feb 2, 2019
Messages
86
Reaction score
65
Location
San Francisco
Vehicle(s)
Jeep JLUR
Nice install! Can you tell me where you got the adapter that connects the controller to the 67 designs arm? that looks clean.
