Am I measuring caster wrong?

KNN

Well-Known Member
First Name
K
Joined
Jun 5, 2020
Messages
90
Reaction score
45
Location
Maryland
Vehicle(s)
2020 JLU Sport Diesel
I’m getting different numbers that don’t seem to match up.

85.5 degrees off the diff

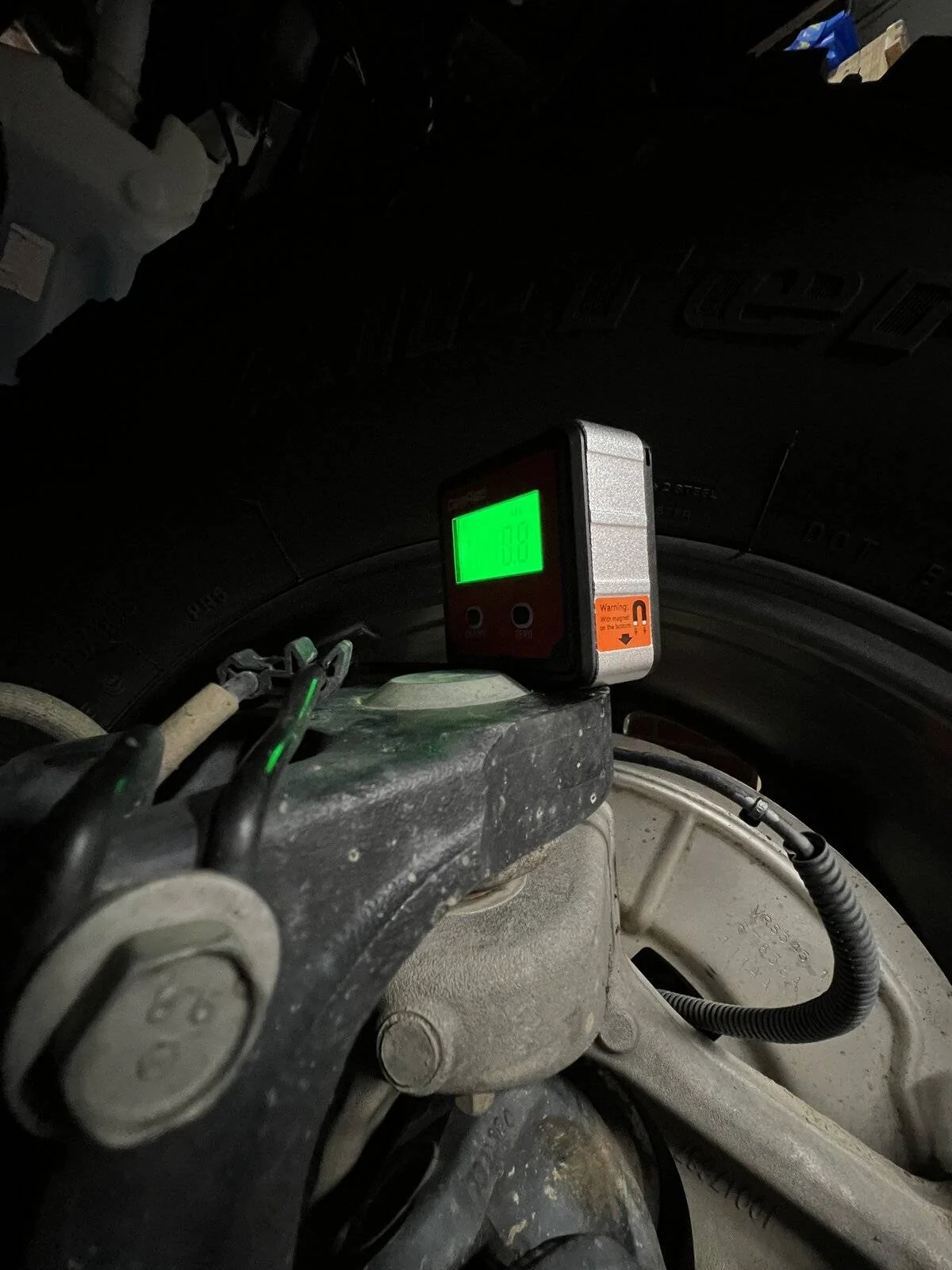

0-2 degrees from top C

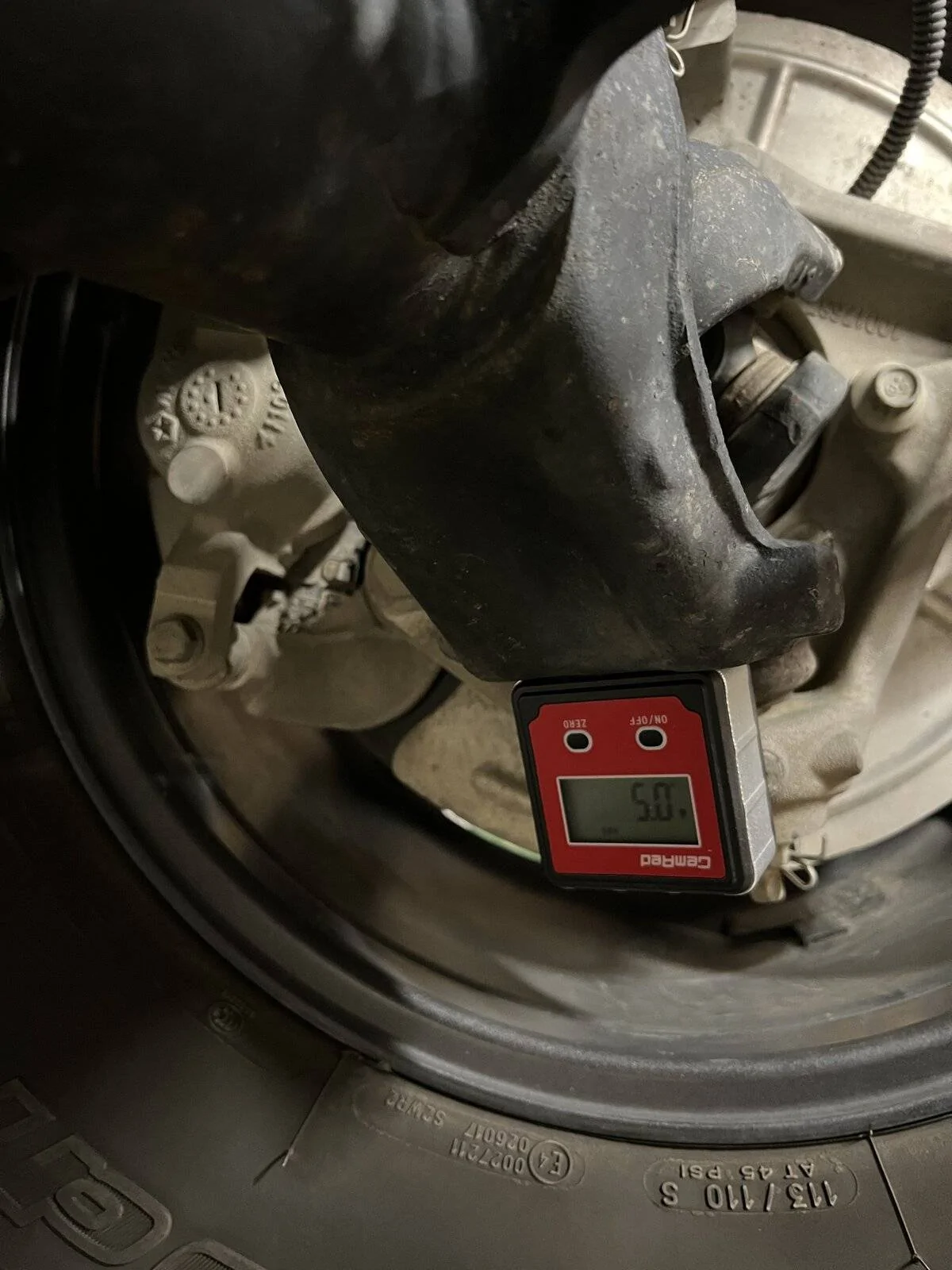

5 degrees from the bottom C

Numbers change depending on placement of angle finder. I have an appointment for an alignment but I’m curious what I’m doing wrong?

All measurements taken from driver side on a Clayton 3.5 Overland Plus lift.


Advertisement



word302

Well-Known Member
Joined
Sep 13, 2017
Messages
3,674
Reaction score
3,927
Location
Oregon
Vehicle(s)
JLU
The Cs are extremely hard to get an accurate measurement from because it’sa compound angle. Any rotation of the measuring device will change the angle. The diff is 6° off from 0 so probably pretty close there.

OP
OP
KNN

KNN

Well-Known Member
First Name
K
Joined
Jun 5, 2020
Messages
90
Reaction score
45
Location
Maryland
Vehicle(s)
2020 JLU Sport Diesel
The Cs are extremely hard to get an accurate measurement from because it’sa compound angle. Any rotation of the measuring device will change the angle. The diff is 6° off from 0 so probably pretty close there.
The passenger side diff reads 86.9. I’ve read this is not unusual. Based on these values is it safe to say I’m running between 9-10 degrees of caster?


OP
OP
KNN

KNN

Well-Known Member
First Name
K
Joined
Jun 5, 2020
Messages
90
Reaction score
45
Location
Maryland
Vehicle(s)
2020 JLU Sport Diesel
I’m confused. How does the 6 degrees factor in then?


word302

Well-Known Member
Joined
Sep 13, 2017
Messages
3,674
Reaction score
3,927
Location
Oregon
Vehicle(s)
JLU
The passenger side diff reads 86.9. I’ve read this is not unusual. Based on these values is it safe to say I’m running between 9-10 degrees of caster?

If the number decreases as you rotate the angle-finder down, then yes. If it increases then you are showing 3-4°, which is much more likely. This all assumes your floor is perfectly flat.
