Air Intake Question

garyji

Well-Known Member
First Name
Gary
Joined
Dec 2, 2017
Messages
109
Reaction score
108
Location
Western NC
Vehicle(s)
2017 JK Sahara, 2021 JLU Willys
Did a Google search to no avail. Could someone with way more engine knowledge than me please explain what all the "boxes and chambers" on the stock , plastic intake tube are for. I've noticed that all the after market stuff including the Mopar CAI don't have any of that. It's just a tube. Green stuff, mileage??

thanks,

G.





Advertisement


OP
garyji

garyji

Well-Known Member
First Name
Gary
Joined
Dec 2, 2017
Messages
109
Reaction score
108
Location
Western NC
Vehicle(s)
2017 JK Sahara, 2021 JLU Willys
  • Thread starter
  • Thread Starter
  • #5
Thanks for the input. Never thought I would be having coffee and reading about Helmholtz resonators. More smart today than yesterday!

G.


BlackGenesis

Well-Known Member
First Name
Andrey
Joined
Dec 4, 2019
Messages
418
Reaction score
368
Location
Muskegon Michigan.
Vehicle(s)
18 Sahara unlimited
Most of the time companies post misleading results to inflate their gains, sell product.

Due to horrible stock tune, intake gains are minimal- 5hp at the top end and hardly anything mid range.
Intake would be beneficial if you are to get a tune thru Livernois.


OP
garyji

garyji

Well-Known Member
First Name
Gary
Joined
Dec 2, 2017
Messages
109
Reaction score
108
Location
Western NC
Vehicle(s)
2017 JK Sahara, 2021 JLU Willys
  • Thread starter
  • Thread Starter
  • #7
Not looking to do a CAI for any gains. I was just curious about all the "boxes and chambers" in the stock pipe. BrntWS6 said it all; "helmholtz resonator".

Thanks again for the education.

G.


Tread4Lo

Well-Known Member
Joined
Feb 10, 2020
Messages
86
Reaction score
85
Location
Texas
Vehicle(s)
2020 w/ 3.6
It's amazing how big of chambers are on the stock intake tube too. I noticed when removing the PCM for the Livernois tune. There is one that hangs down, right at the 90* that sits behind the fan. In the words of Trump, "it's YUGE!"


blnewt

Well-Known Member
First Name
Brad
Joined
Oct 8, 2018
Messages
3,931
Reaction score
3,806
Location
New Mexico
Vehicle(s)
2019 Jeep JL Sport S, 03 Toyota 4Runner, Infiniti G37, Toyota T100 (Retired 74 CJ-5, 80 CJ-7)

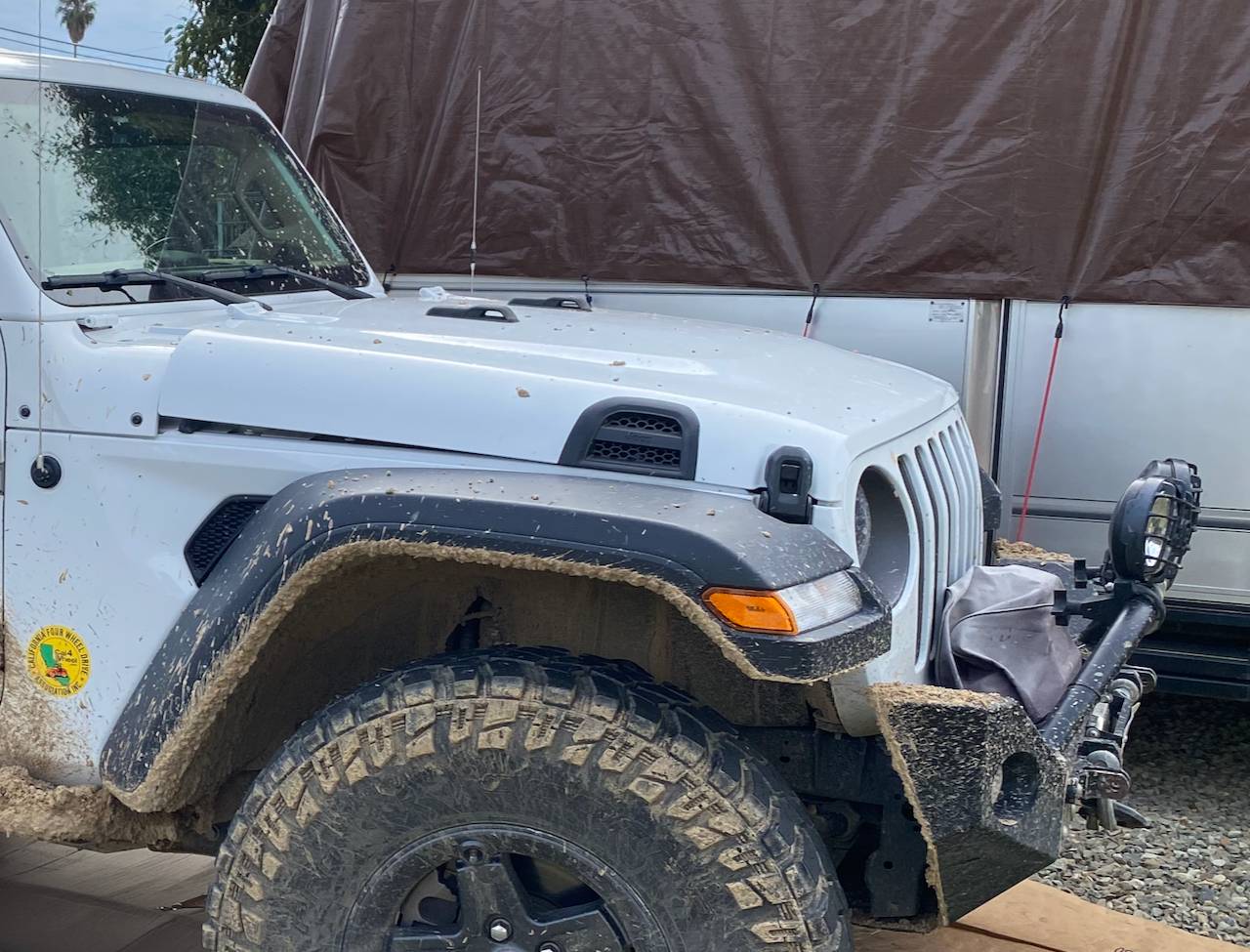

I wish they dyno'd Mopars outside CAI system. It draws outside air via the cut in hood vent. True CAI system.
Mopar hood CAI.jpeg
Did you notice much gain there? Only one experience w/ a CAI (in our V6 Infiniti) and it robbed low-end torque for high rpm gain, not a good tradeoff for motors that don't have a lot of low rpm power to give away.


sourdough

Well-Known Member
First Name
Ben
Joined
Nov 12, 2017
Messages
1,112
Reaction score
2,265
Location
93013
Vehicle(s)
'19 JLR dingy, Ram3500 diesel 4x4 Tiger RV
Build Thread
Link
Occupation
union sheet metal worker (retired 2008)
Vehicle Showcase
4
Nothing. The hinges are extended to raise the hood for venting. Forum follows function and it works excellent. I use to get motor temp spikes during motor shut downs and the radiator fan automatically would come on high for a period at startup. Doesn't do that annoying jet airplane thing anymore. I don't think motor temp spikes are an issue with DD'rs.


sourdough

Well-Known Member
First Name
Ben
Joined
Nov 12, 2017
Messages
1,112
Reaction score
2,265
Location
93013
Vehicle(s)
'19 JLR dingy, Ram3500 diesel 4x4 Tiger RV
Build Thread
Link
Occupation
union sheet metal worker (retired 2008)
Vehicle Showcase
4
Did you notice much gain there? Only one experience w/ a CAI (in our V6 Infiniti) and it robbed low-end torque for high rpm gain, not a good tradeoff for motors that don't have a lot of low rpm power to give away.
I really don't notice any difference. There are a few videos of JL CAI dyno runs...
https://www.youtube.com/results?search_query=wrngler+jl+jlt+intake
I would never have purchased this CAI with my own money. My hood swap with a Sahara owner neted me $500.I used the cash to purchase the Mopar intake which is functional and unique.


blnewt

Well-Known Member
First Name
Brad
Joined
Oct 8, 2018
Messages
3,931
Reaction score
3,806
Location
New Mexico
Vehicle(s)
2019 Jeep JL Sport S, 03 Toyota 4Runner, Infiniti G37, Toyota T100 (Retired 74 CJ-5, 80 CJ-7)

Mfarr75

Well-Known Member
Joined
Jul 2, 2020
Messages
217
Reaction score
664
Location
North Carolina
Vehicle(s)
2021 JLUS
Did a Google search to no avail. Could someone with way more engine knowledge than me please explain what all the "boxes and chambers" on the stock , plastic intake tube are for. I've noticed that all the after market stuff including the Mopar CAI don't have any of that. It's just a tube. Green stuff, mileage??

thanks,

G.
They are the resonators, and help very much with sound. For whatever reason, without them your Jeep will sound like it swallowed a frog. I've tried "smooth tube" intakes and got rid of every one because my JL made this annoying gutteral sound at low idle cruise.


sourdough

Well-Known Member
First Name
Ben
Joined
Nov 12, 2017
Messages
1,112
Reaction score
2,265
Location
93013
Vehicle(s)
'19 JLR dingy, Ram3500 diesel 4x4 Tiger RV
Build Thread
Link
Occupation
union sheet metal worker (retired 2008)
Vehicle Showcase
4
Here is a couple photos of the stock air intake tube with helmholtz resonators...

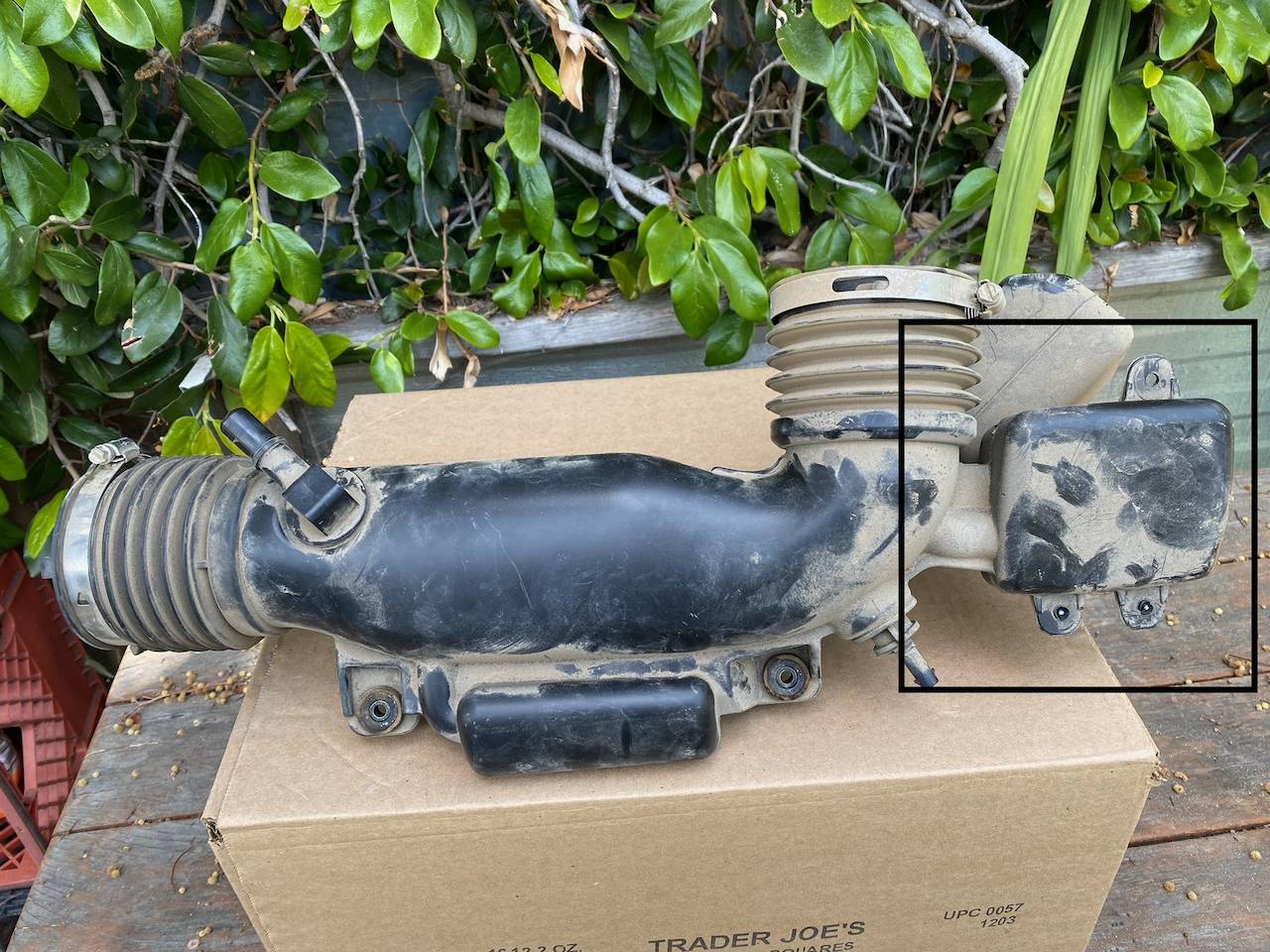

top view
stock JL 3.6 air intake tube (a.jpeg

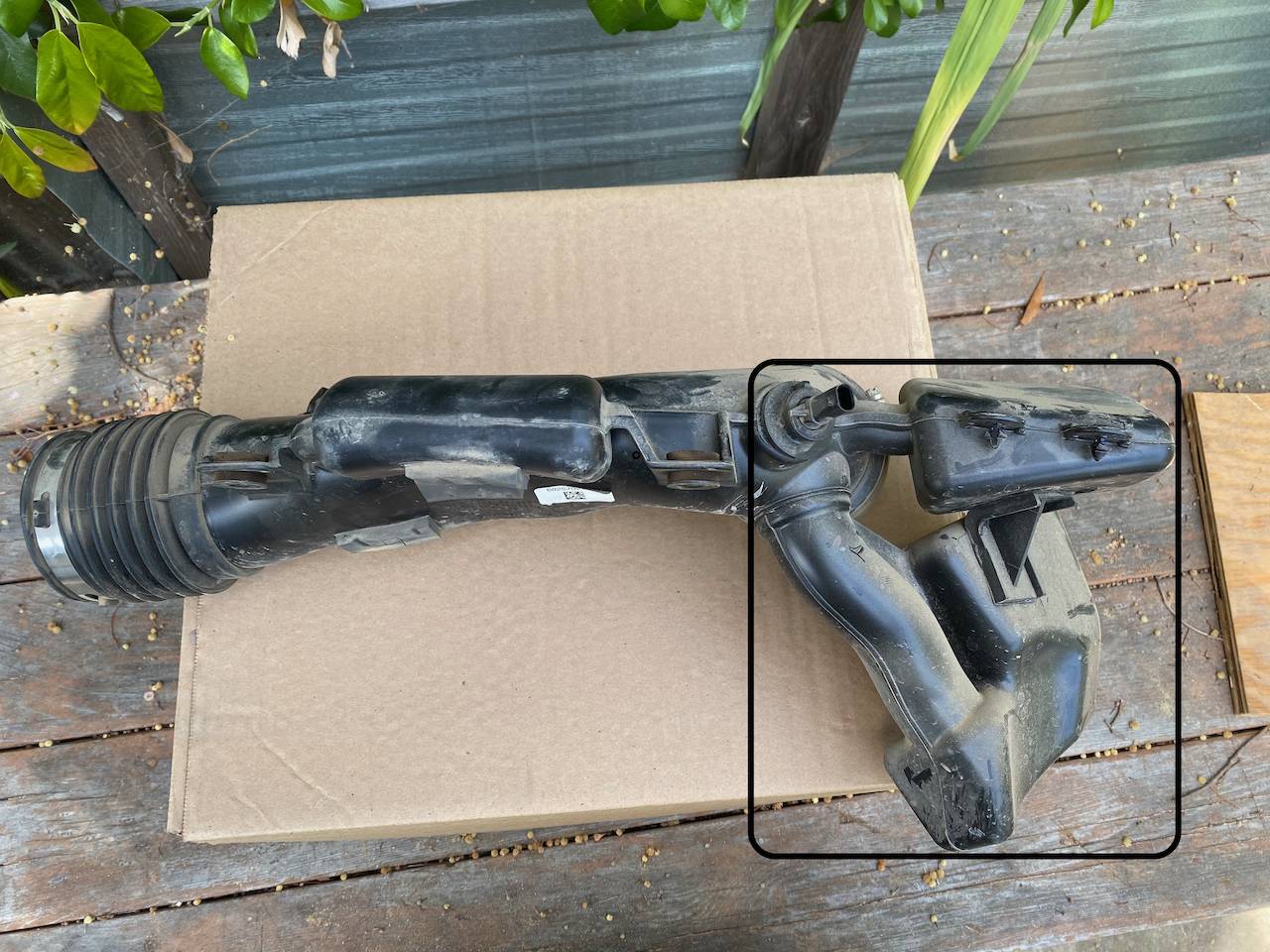

side view
stock JL 3.6 air intake tube (b.jpeg

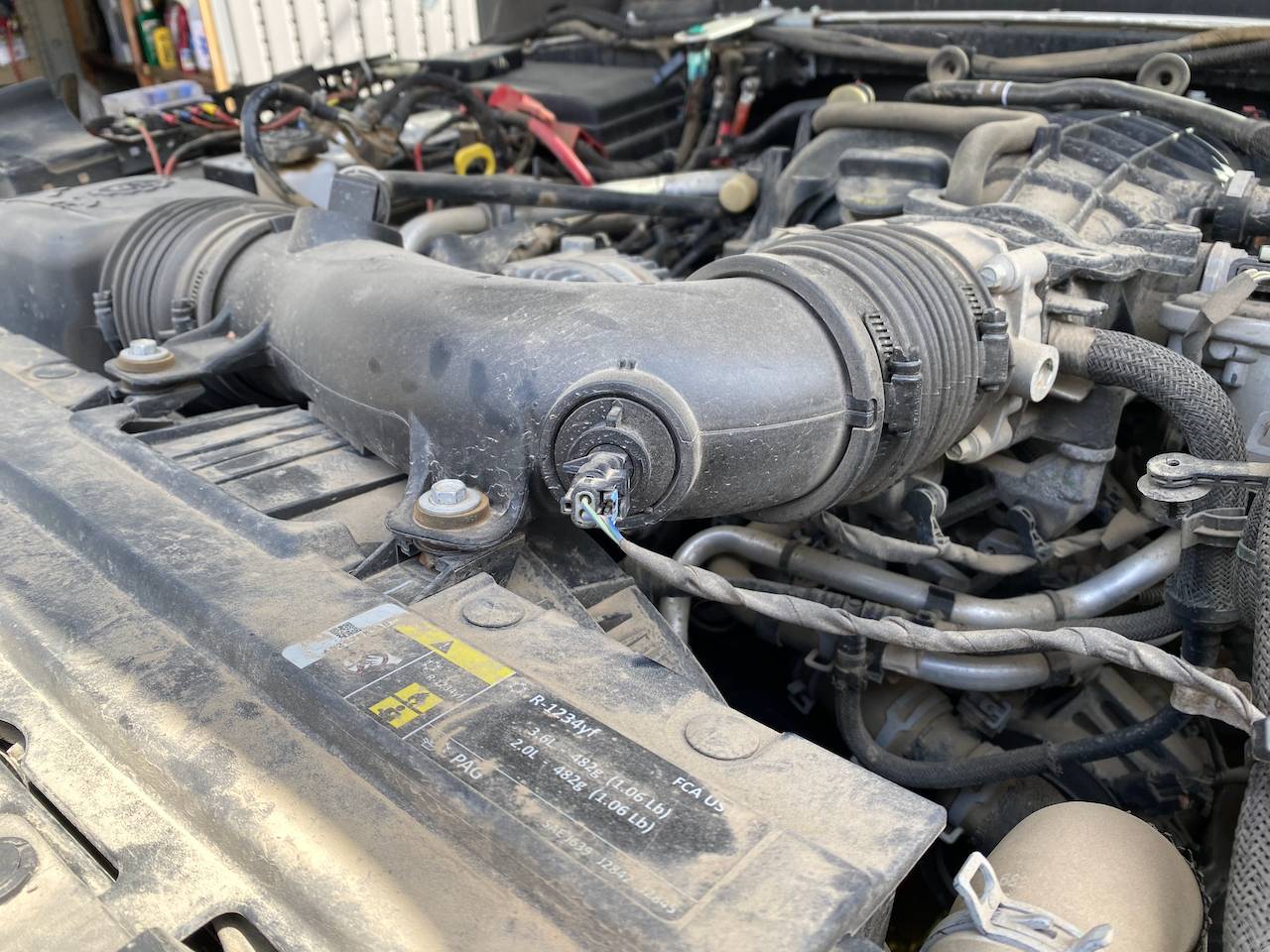

side view of Mopar CAI with no helmholtz resonator
Mopar CAI tube.jpeg
