3.6L ESS Battery Basics

Jebiruph

Well-Known Member
First Name
Jerry
Joined
Feb 18, 2018
Messages
1,316
Reaction score
1,587
Location
Iowa
Vehicle(s)
2018 JLU, 2019 KL, 2020 JT
I have observed that there may be a need for some basic ESS based electrical theory. For those that struggle to understand how electricity works, some basic electrical concepts can be better understood by using basic plumbing concepts. Substituting water for electricity, pipes for wire and water pressure for electrical voltage may make it easier to understand some of how the ESS batteries work.

To that end, I have redrawn my ESS Battery Diagram as a plumbing diagram to help illustrate how the system works. I represent the batteries as tanks to store water under pressure, the alternator is a pressure pump and the starter is a turbine. I use various intensities of blue to represent the levels of pressure in the system.

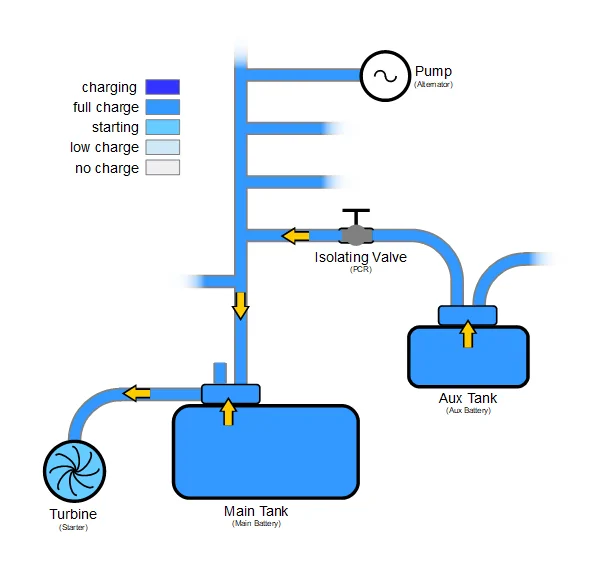

This is the normal start diagram (not from an auto stop) with fully charged batteries. Both batteries are providing pressure to the system, so both batteries are providing power to the starter. Even if ESS is disabled, the batteries are still both connected to the system and both provide power to the starter.

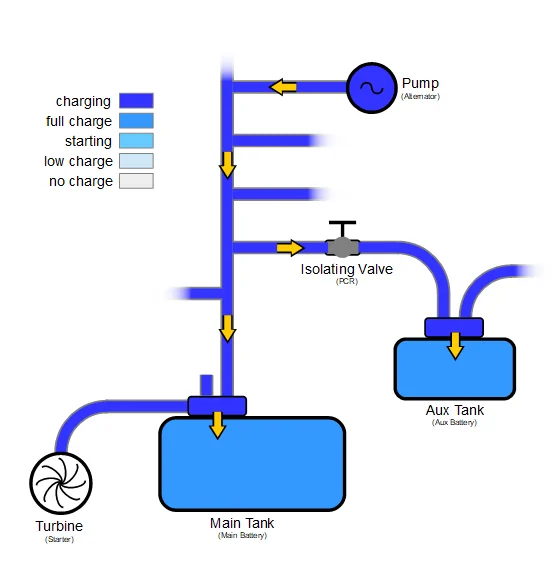

This is the engine running diagram with the alternator providing power to the system. As long as the pressure from the alternator is greater than the pressure in the batteries, the batteries will pressurize to their limit and will not discharge.

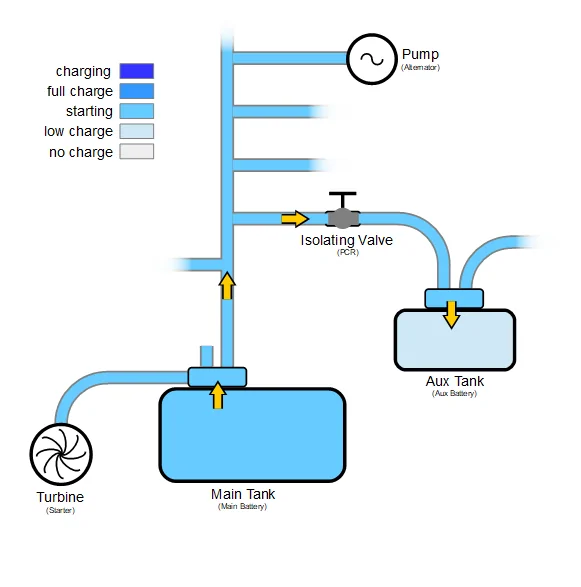

This diagram shows a bad Aux battery that won't fully charge. The engine is off, so no alternator pressure. The higher pressure of the fully charged main battery will be discharging into the lower pressure of the bad Aux battery until the pressure equalizes, which over time reuslts in 2 dead batteries.

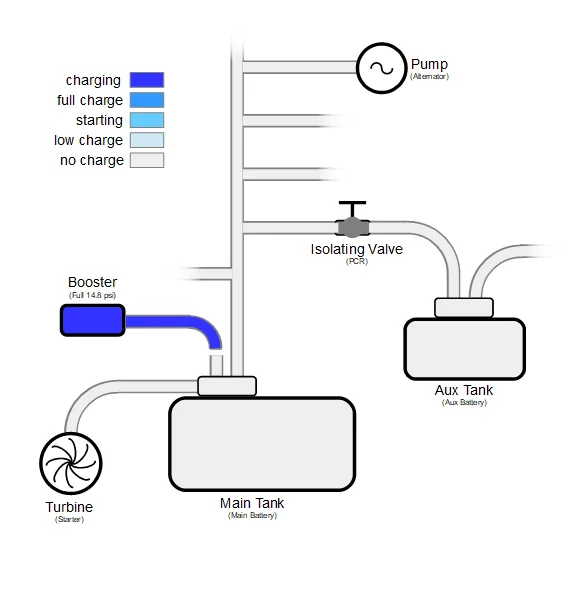

Here's 2 dead batteries on the verge of being jump started with a booster pack. Virtually no pressure in the system at all.

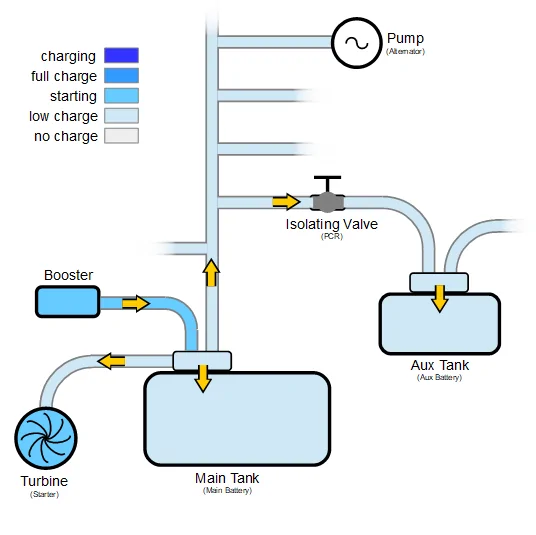

Here's trying to start with the booster connected to the discharged system. The pressure from the booster is distributed throughout the system and there is not enough pressure available at the starter to start. As the pressure accumulates in the batteries, more pressure then becomes available for the starter. If the booster is too small, it will not be able to pressurize the whole system to the point where it will be able to power the starter.

Let me know if you have any questions or comments.


(updated 04/13/2019)
Additional 3.6L ESS system information is available here.
3.6L ESS Dual Battery Consolidated Information
https://www.jlwranglerforums.com/forum/threads/3-6l-ess-dual-battery-consolidated-information.2





Advertisement


Last edited:

OldGuyNewJeep

Well-Known Member
Joined
Sep 21, 2017
Messages
2,995
Reaction score
4,835
Location
CT
Vehicle(s)
2018 Wrangler JL, 2016 Yukon XL
THANK YOU!


WreakingHavoc

Well-Known Member
First Name
Duane
Joined
Oct 27, 2018
Messages
58
Reaction score
88
Location
London Ontario Canada
Vehicle(s)
2019 Rubicon JL, 2015 Cherokee Trailhawk, 2018 Cherokee Trailhawk
Occupation
Psychiatric Nurse
I have observed that there may be a need for some basic ESS based electrical theory. For those that struggle to understand how electricity works, some basic electrical concepts can be better understood by using basic plumbing concepts. Substituting water for electricity, pipes for wire and water pressure for electrical voltage may make it easier to understand some of how the ESS batteries work.

To that end, I have redrawn my ESS Battery Diagram as a plumbing diagram to help illustrate how the system works. I represent the batteries as tanks to store water under pressure, the alternator is a pressure pump and the starter is a turbine. I use various intensities of blue to represent the levels of pressure in the system.

This is the normal start diagram (not from an auto stop) with fully charged batteries. Both batteries are providing pressure to the system, so both batteries are providing power to the starter. Even if ESS is disabled, the batteries are still both connected to the system and both provide power to the starter.

This is the engine running diagram with the alternator providing power to the system. As long as the pressure from the alternator is greater than the pressure in the batteries, the batteries will pressurize to their limit and will not discharge.

This diagram shows a bad Aux battery that won't fully charge. The engine is off, so no alternator pressure. The higher pressure of the fully charged main battery will be discharging into the lower pressure of the bad Aux battery until the pressure equalizes, which over time reuslts in 2 dead batteries.

Here's 2 dead batteries on the verge of being jump started with a booster pack. Virtually no pressure in the system at all.

Here's trying to start with the booster connected to the discharged system. The pressure from the booster is distributed throughout the system and there is not enough pressure available at the starter to start. As the pressure accumulates in the batteries, more pressure then becomes available for the starter. If the booster is too small, it will not be able to pressurize the whole system to the point where it will be able to power the starter.

Let me know if you have any questions or comments.
Very impressive! Maybe the best effort into a forum post I've seen, well done!


WranglerMan

Well-Known Member
First Name
Will
Joined
May 8, 2018
Messages
2,817
Reaction score
1,973
Location
Katy Texas
Vehicle(s)
2018 Wrangler JLU Sahara
Occupation
Gas Pipeliner
Vehicle Showcase
1
@Jebiruph you have been a great help to me in so many ways so thanks again for making it easier to understand this whole duel battery system

OP
Jebiruph

Jebiruph

Well-Known Member
First Name
Jerry
Joined
Feb 18, 2018
Messages
1,316
Reaction score
1,587
Location
Iowa
Vehicle(s)
2018 JLU, 2019 KL, 2020 JT
  • Thread starter
  • Thread Starter
  • #6
@Jebiruph you have been a great help to me in so many ways so thanks again for making it easier to understand this whole duel battery system
Thanks for your comments, glad it helps.


OldGuyNewJeep

Well-Known Member
Joined
Sep 21, 2017
Messages
2,995
Reaction score
4,835
Location
CT
Vehicle(s)
2018 Wrangler JL, 2016 Yukon XL
@Jebiruph, one question - any idea what size booster could get the job done? And how long it’d need to be connected to pressurize the system? i.e. would AAA be able to jump a JL with their commercial grade booster if they let it be for a few minutes?


plex

Well-Known Member
Joined
Oct 25, 2018
Messages
1,053
Reaction score
1,389
Location
Cincinnati, OH
Vehicle(s)
2018 JLUR
Occupation
Weekend keyboard mechanic and beer drinker
Vehicle Showcase
1
So does this mean when one or two batteries went out, we cannot just go to Autozone or AAP to swap the batteries but have to go through dealer?


WXman

Well-Known Member
Joined
Mar 1, 2017
Messages
2,511
Reaction score
2,313
Location
Central Kentucky
Vehicle(s)
2018 Wrangler Unlimited
Occupation
Meteorology and Transportation
Does anyone have specs on the aux. battery? CCA, reserve capacity, etc? I'm betting that upgrading to a higher quality battery to replace the aux. battery would result in a more reliable system.

OP
Jebiruph

Jebiruph

Well-Known Member
First Name
Jerry
Joined
Feb 18, 2018
Messages
1,316
Reaction score
1,587
Location
Iowa
Vehicle(s)
2018 JLU, 2019 KL, 2020 JT
  • Thread starter
  • Thread Starter
  • #10
Does anyone have specs on the aux. battery? CCA, reserve capacity, etc? I'm betting that upgrading to a higher quality battery to replace the aux. battery would result in a more reliable system.
This number was posted by some one BBAUA200AD

OP
Jebiruph

Jebiruph

Well-Known Member
First Name
Jerry
Joined
Feb 18, 2018
Messages
1,316
Reaction score
1,587
Location
Iowa
Vehicle(s)
2018 JLU, 2019 KL, 2020 JT
  • Thread starter
  • Thread Starter
  • #11
So does this mean when one or two batteries went out, we cannot just go to Autozone or AAP to swap the batteries but have to go through dealer?
My plan for the remainder of my warranty is to bypass the Aux battery if needed until I can get to the dealer and only buy a main battery if I can't get it to the dealer.

OP
Jebiruph

Jebiruph

Well-Known Member
First Name
Jerry
Joined
Feb 18, 2018
Messages
1,316
Reaction score
1,587
Location
Iowa
Vehicle(s)
2018 JLU, 2019 KL, 2020 JT
  • Thread starter
  • Thread Starter
  • #12
@Jebiruph, one question - any idea what size booster could get the job done? And how long it’d need to be connected to pressurize the system? i.e. would AAA be able to jump a JL with their commercial grade booster if they let it be for a few minutes?
@Rhinebeck01 had a dead battery incident where the tow truck's booster pack wasn't quite enough, but following with the trucks dual battery system got it done. I don't know what it would take to boost a totally depleted system, but it may not take much for a partially depleted system. My plan would be to bypass the aux battery and jump start the main battery only, reconnecting the aux battery after it starts. Myself, I will keep an eye out for good deal on a quality booster pack.


OldGuyNewJeep

Well-Known Member
Joined
Sep 21, 2017
Messages
2,995
Reaction score
4,835
Location
CT
Vehicle(s)
2018 Wrangler JL, 2016 Yukon XL
@Rhinebeck01 had a dead battery incident where the tow truck's booster pack wasn't quite enough, but following with the trucks dual battery system got it done. I don't know what it would take to boost a totally depleted system, but it may not take much for a partially depleted system. My plan would be to bypass the aux battery and jump start the main battery only, reconnecting the aux battery after it starts. Myself, I will keep an eye out for good deal on a quality booster pack.
Bypass as in simply disconnect it’s negative lead?


WranglerMan

Well-Known Member
First Name
Will
Joined
May 8, 2018
Messages
2,817
Reaction score
1,973
Location
Katy Texas
Vehicle(s)
2018 Wrangler JLU Sahara
Occupation
Gas Pipeliner
Vehicle Showcase
1
My plan for the remainder of my warranty is to bypass the Aux battery if needed until I can get to the dealer and only buy a main battery if I can't get it to the dealer.
If you choose to bypass it how would it remain charged, and by bypassing do you mean the jumper connected to N1 and N2 then the ESS negative disconnected off the main correct ?


WranglerMan

Well-Known Member
First Name
Will
Joined
May 8, 2018
Messages
2,817
Reaction score
1,973
Location
Katy Texas
Vehicle(s)
2018 Wrangler JLU Sahara
Occupation
Gas Pipeliner
Vehicle Showcase
1
Bypass as in simply disconnect it’s negative lead?
I believe bypassing the ESS battery requires a jumper like this between N1 and N2, your choice on how to connect but wingnuts are the easiest
