Has anyone ran into an issue with the front drive shaft being different yet?

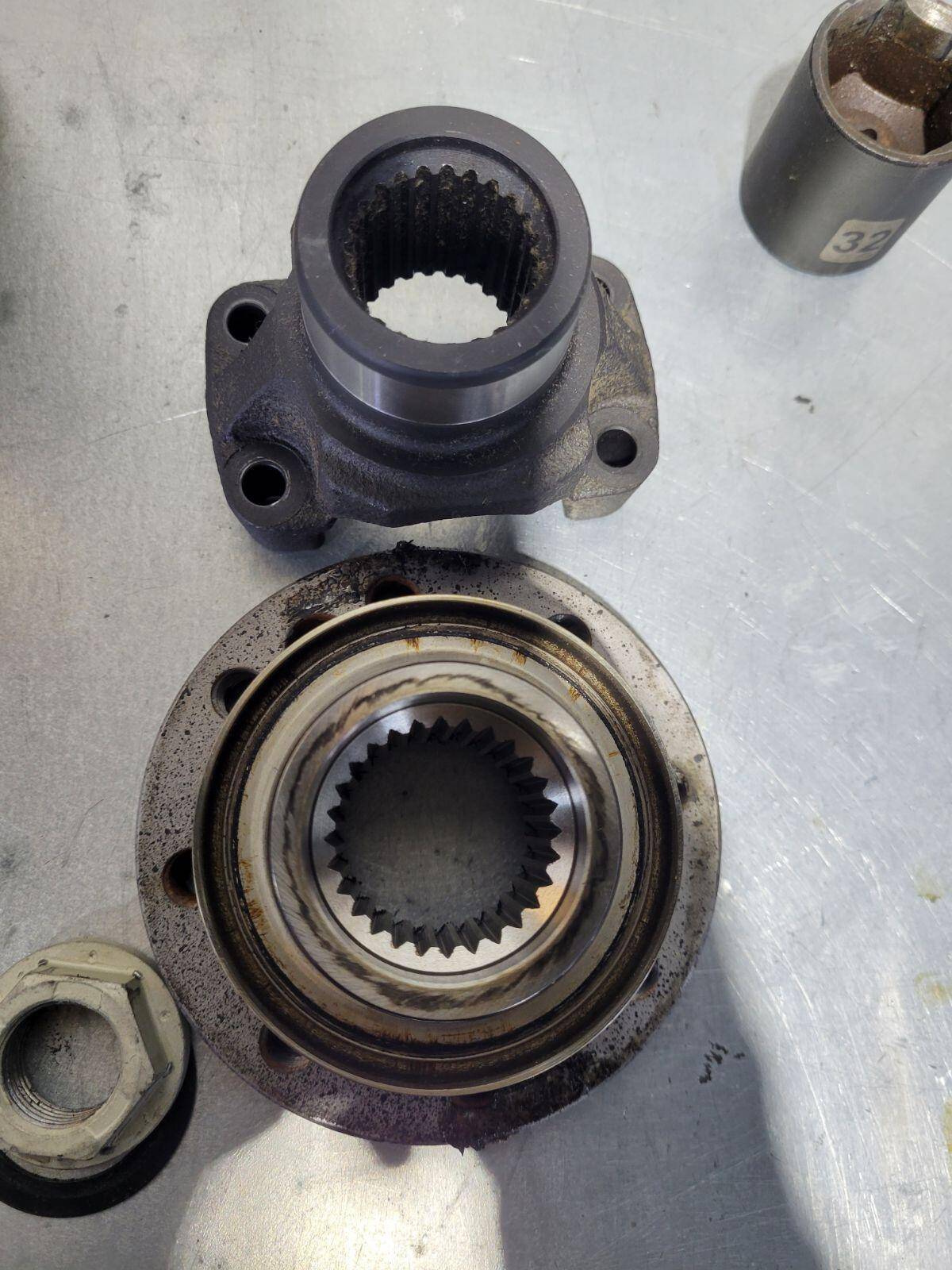

I have a 24 Rubicon, 6 speed with 4.88 gears. Just installed a metalcloak 2.5” lift and forgot my 32mm socket so couldn’t install my new drive shaft. Took it to a shop to get an alignment done and asked them to throw the new front drive shaft in while they had it up. I ordered a Yukon 1310 drive shaft. Box said Sport / Sahara Dana 30, but my understand was I swap yokes and it’s fine. Shop told me the “inside spine diameter on the Yukon is way too small”. I can’t seem to find anywhere that they changed anything with the 2024’s. Could it be different with the 4.88’s? This is the crappy pic they sent my from the shop. I have not had a chance to get under and look myself, but if I have to return the driveshaft I have to do it in the next few days or I’m outside of the return policy.

Jeep Wrangler JL 24 JLUR front drive shaft image000001
Sponsored



Grey24Rubi

Well-Known Member
Joined
Feb 28, 2024
Threads
6
Messages
141
Reaction score
165
Location
NW
Vehicle(s)
2024 4dr Rubicon
Curious, since I have a 24 JLUR w/4.88's except mine is 8sp auto, why are replacing the front drive shaft?

OP
OP
BigJim378

BigJim378

Well-Known Member
First Name
Jim
Joined
Jun 26, 2023
Threads
3
Messages
167
Reaction score
292
Location
Conn.
Vehicle(s)
2016 Grand Cherokee, 2024 Sarge Rubicon 3.6 6MT
Clubs

Just installed a 2.5” Metalcloak lift. I know I don’t “need” to do the driveshaft with the 2.5” but it’s recommended. Figured I’d just do it all once rather than get out on a trail and run into an issue.

OP
OP
BigJim378

BigJim378

Well-Known Member
First Name
Jim
Joined
Jun 26, 2023
Threads
3
Messages
167
Reaction score
292
Location
Conn.
Vehicle(s)
2016 Grand Cherokee, 2024 Sarge Rubicon 3.6 6MT
Clubs

Don’t they sell one for a rubicon?
No they dont. My understanding (I could be wrong) was that they are interchangeable, just the yoke is different with a Rubicon vs Non Rubicon. If you look at Yukon, Adams, Tom Woods and so on, none of them list a different part number for a Rubicon front drive shaft


Sponsored

UnBilleted

Member
Joined
Feb 16, 2022
Threads
2
Messages
22
Reaction score
70
Location
Ca
Vehicle(s)
2020 JLUR
Rear is different now but haven’t heard about the front. Front should be 24 and rear 28. Is the front a 28 now?

OP
OP
BigJim378

BigJim378

Well-Known Member
First Name
Jim
Joined
Jun 26, 2023
Threads
3
Messages
167
Reaction score
292
Location
Conn.
Vehicle(s)
2016 Grand Cherokee, 2024 Sarge Rubicon 3.6 6MT
Clubs

Rear is different now but haven’t heard about the front. Front should be 24 and rear 28. Is the front a 28 now?
That’s what’s going me wondering. The photo definitely shows 28 spline yoke.

Like I said I was not there, I dropped it at a 4x4 shop near my work to get it aligned and swap the driveshaft. Full disclosure, I’m not exactly happy with the alignment. Caster was set at 5.2* and 5.7* (hence why I wanted to get it checked). They set it to 4.1*/4.3*. Said they have never heard of setting it as high as 6* and they set all of their lifted vehicles like this. My fault for not saying what I wanted to begin with, but I assumed a “truck” shop that is known for lift install would know. They told me they could fix it, but would charge another hour of labor at $145/hr to do it since their alignment machine said it was good.

Reason I bring up the alignment part, I would honestly not be surprised to find out they dropped the rear driveshaft and not the front. This is one of the reasons I was checking if anyone else has run into this with their 2024’s

OP
OP
BigJim378

BigJim378

Well-Known Member
First Name
Jim
Joined
Jun 26, 2023
Threads
3
Messages
167
Reaction score
292
Location
Conn.
Vehicle(s)
2016 Grand Cherokee, 2024 Sarge Rubicon 3.6 6MT
Clubs

I just went out and checked under the jeep. I can see the tool marks on the front drive shaft and none of the rear. Its pretty obvious they dropped the front one, but I have not heard of a 28 spline front driveshaft in these before.

OP
OP
BigJim378

BigJim378

Well-Known Member
First Name
Jim
Joined
Jun 26, 2023
Threads
3
Messages
167
Reaction score
292
Location
Conn.
Vehicle(s)
2016 Grand Cherokee, 2024 Sarge Rubicon 3.6 6MT
Clubs

Just got off the phone with Yukon support. They said that a Rubicon with a manual transmission is in fact a 28 spline. I can not find this same information anywhere else. The price they gave me for the new driveshaft was almost $1100. I dont mind having to move up to a 1350, but not at double the price.

Can anyone with a manual Rubicon confirm that is a 28 spline?


ParadigmDawg

Well-Known Member
First Name
Greg
Joined
Aug 18, 2023
Threads
14
Messages
1,256
Reaction score
1,988
Location
Fort Worth TX
Vehicle(s)
2024 Jeep Wrangler Rubicon X, 2023 Rubicon 392
Clubs

Just got off the phone with Yukon support. They said that a Rubicon with a manual transmission is in fact a 28 spline. I can not find this same information anywhere else. The price they gave me for the new driveshaft was almost $1100. I dont mind having to move up to a 1350, but not at double the price.

Can anyone with a manual Rubicon confirm that is a 28 spline?
I paid $1559 for front and rear Adam's driveshafts. Something seems off.


Sponsored

OP
OP
BigJim378

BigJim378

Well-Known Member
First Name
Jim
Joined
Jun 26, 2023
Threads
3
Messages
167
Reaction score
292
Location
Conn.
Vehicle(s)
2016 Grand Cherokee, 2024 Sarge Rubicon 3.6 6MT
Clubs


jax501

Well-Known Member
Joined
Mar 2, 2022
Threads
14
Messages
118
Reaction score
106
Location
Florida
Vehicle(s)
'24 JLR

JEEP4U

Well-Known Member
First Name
Richard
Joined
Oct 4, 2021
Threads
15
Messages
830
Reaction score
921
Location
2023
Vehicle(s)
2021 Jeep Wrangler
.... order a spicer driveshaft
