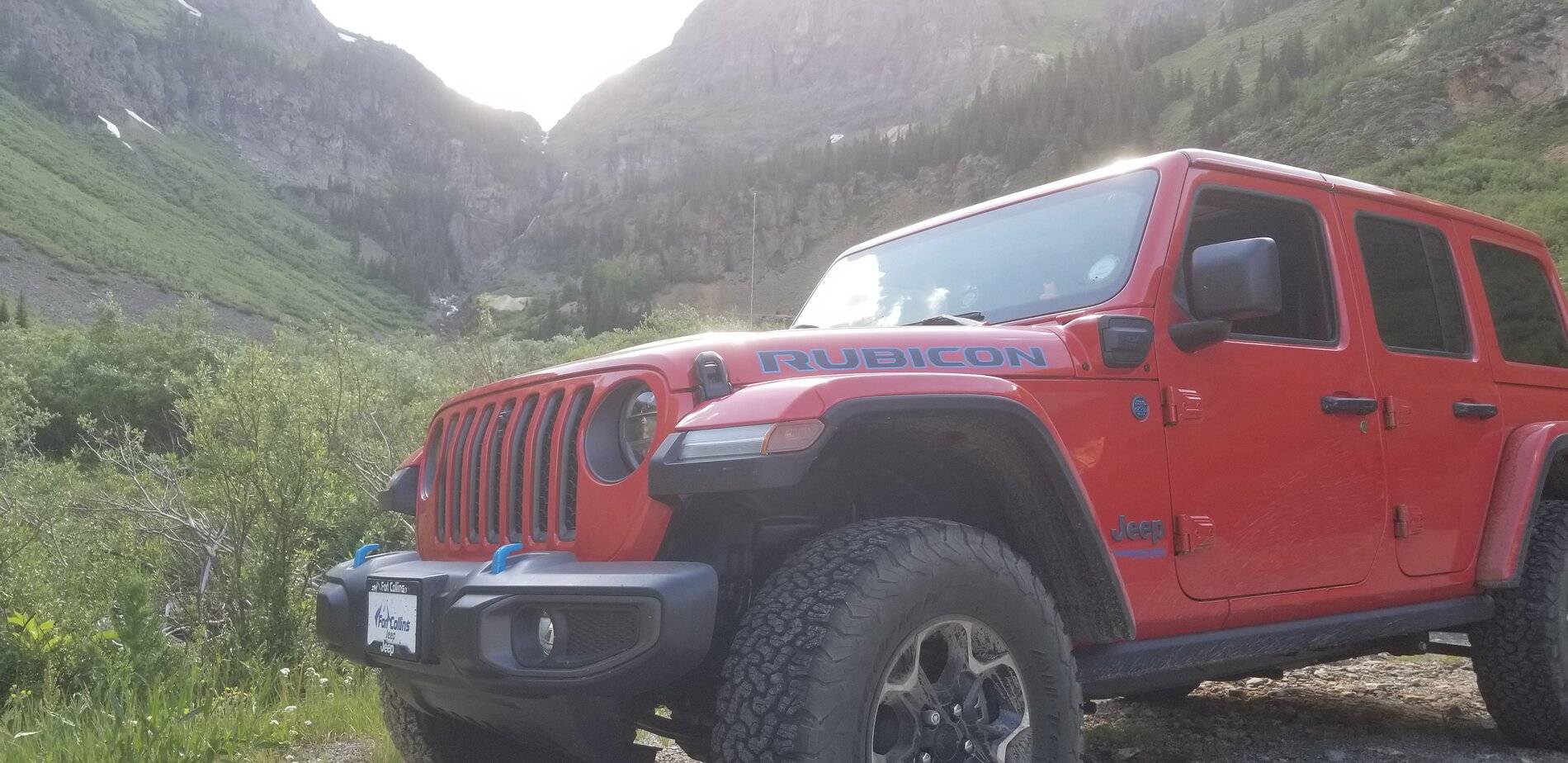

Finally decided to bite the bullet and get the 4xe.

I guess I waited too long because the Chief Blue I really wanted was no longer an option, so I went with red. I don't love the red. I think it's kind of flat. I wish it were a pearl or metallic, but I didn't like any other available colors better, so this will be a decent platform. I have ideas for sprucing up the surface. More to come on that.

I got a great deal when every other dealership was telling me demand was too high, so it would be MSRP or higher. ~6% below invoice. Call Andrew Crimando @ Fort Collins Jeep. Sure, it was two states away, but I wasn't exactly broken up about having to drive the new Jeep across Colorado and Utah, nice and slow to break it in.


Up first, give this girl some new legs. Installing tomorrow:

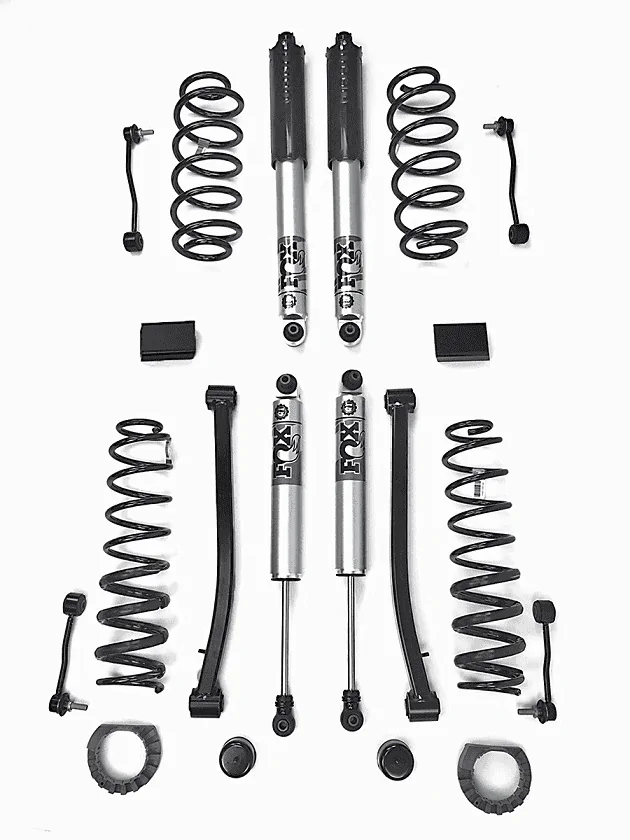

  • Mopar 2" lift with Fox shocks (PN 77072522).
    • justforjeeps.com (best price, but I think I accidentally paid for shipping)

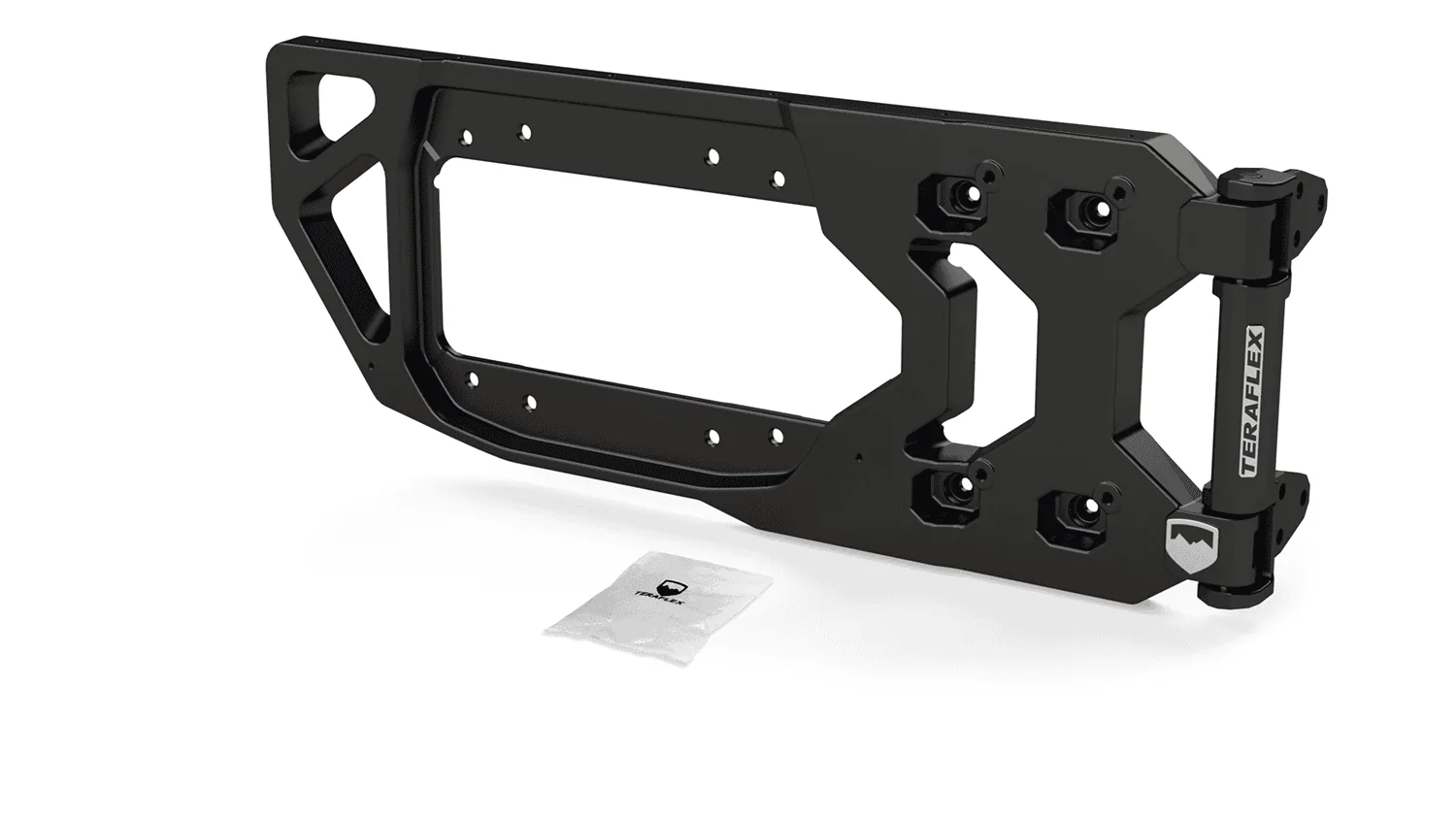

  • Teraflex Alpha HD Hinged Spare Tire Carrier Kit

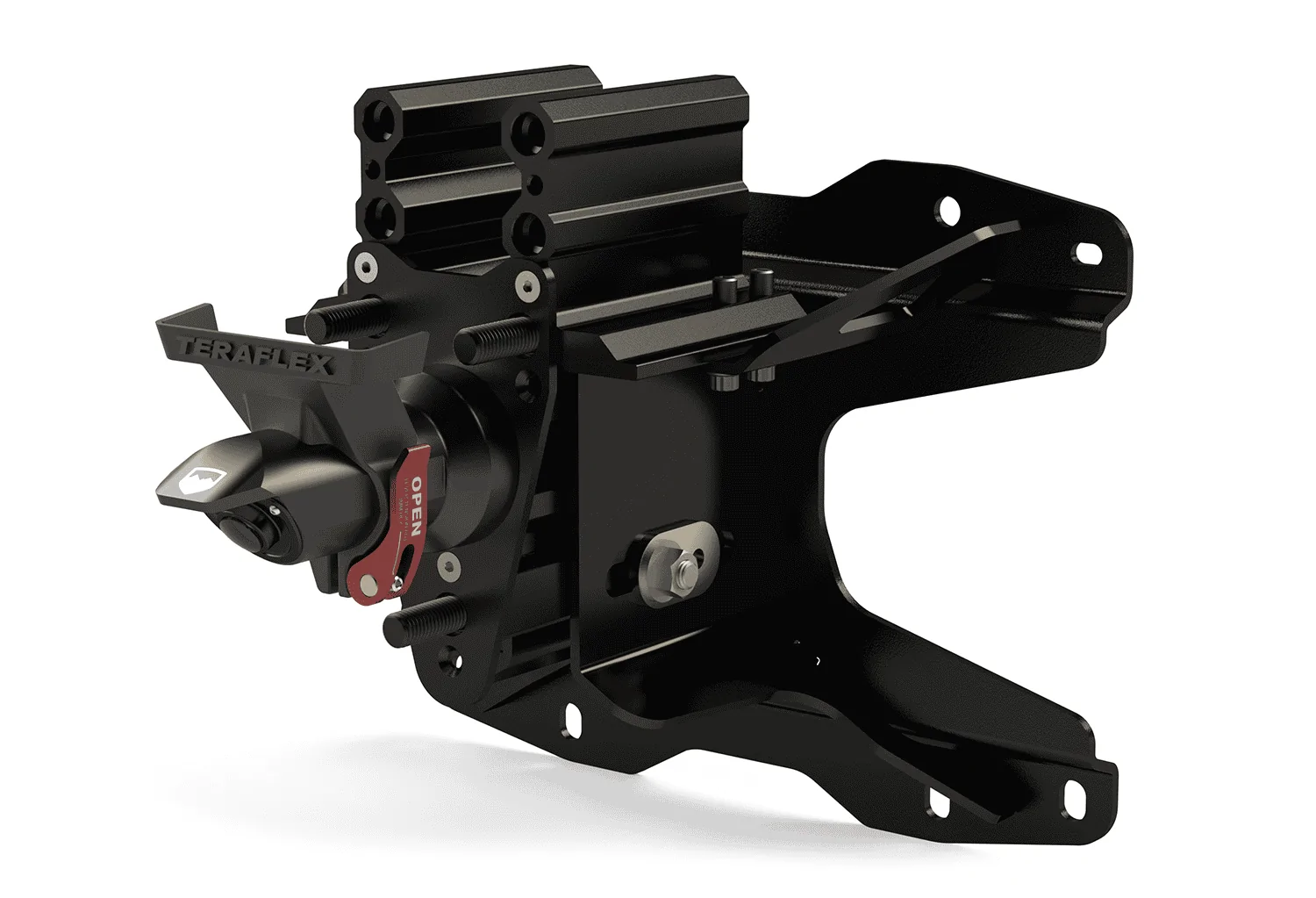

  • Teraflex Alpha HD Adjustable Spare Tire Mount Kit w/ Brake Light & Camera Mounts
    • Off Road Warehouse locally

Coming next week:

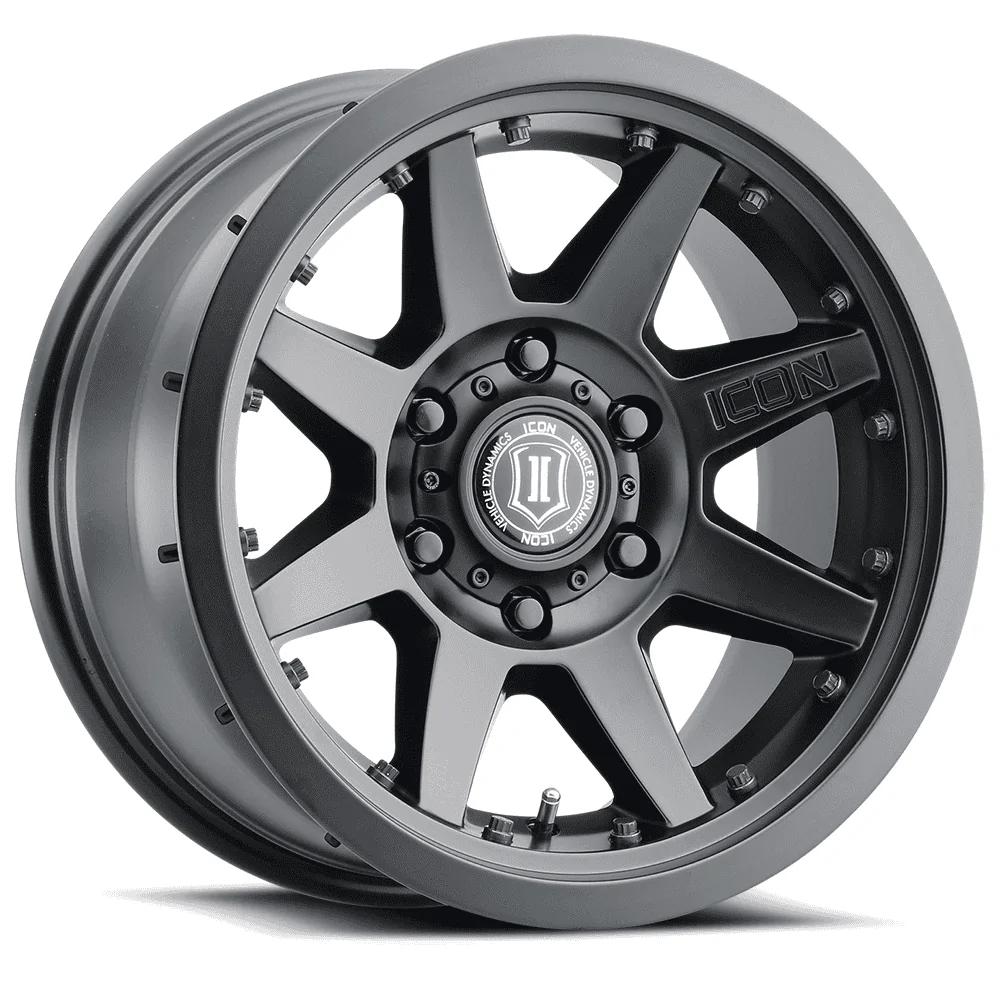

  • Icon Rebound Pro Satin Black

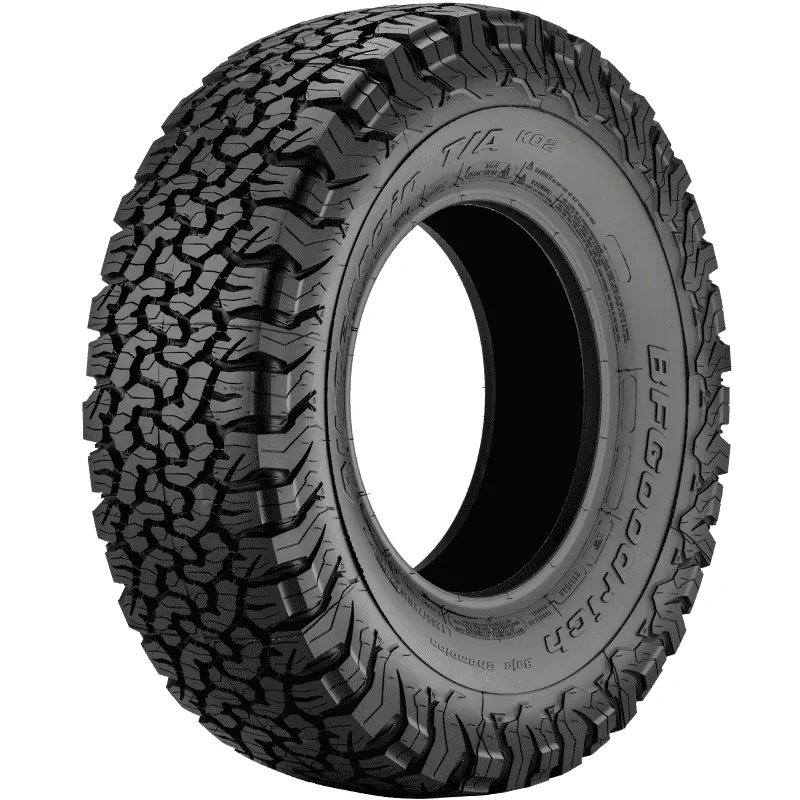

  • 37" BFG KO2s
    • Off Road Warehouse locally

Advertisement


Last edited:
OP
OP
OHV LV

OHV LV

New Member
First Name
Joe
Joined
May 15, 2021
Messages
3
Reaction score
12
Location
Las Vegas, NV, United States
Vehicle(s)
'21 Red 4xe Rubicon. '09 Sunburst Orange JKUX

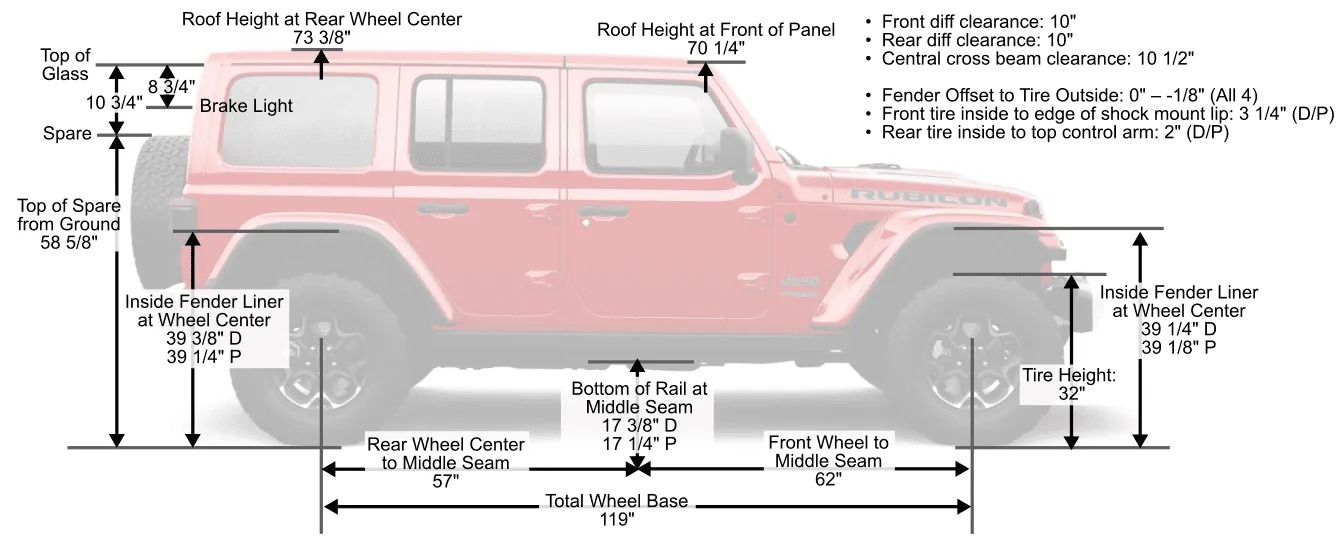

I couldn't get any straight information on the 4xe Rubicon dimensions before I bought mine. I saw that it was one inch taller than other JL Rubicons, but couldn't get total numbers. So, I measured everything in preparation for the lift. I'll post the updated dimensions after, but here is the "Before."



Heights:
  • Roof Height at rear wheel center, vehicle center: 73 3/8"
  • Roof Height at front side of freedom panel, passenger side: 70 1/4"
  • Tire Height 32"
  • Inside front fender at edge of liner: 39 1/4" Driver, 39 1/8" Passenger
  • Inside rear fender at edge of liner: 39 3/8" Driver, 39 1/4" Passenger
  • Top of spare tire height from ground: 58 5/8"
  • Top of spare to top of glass: 10 3/4"
  • Top of third brake light to top of glass: 8 3/4"
Clearances:
  • Rail clearance at middle body seam: 17 3/8" Driver, 17 1/4" Passenger
  • Front diff clearance: 10"
  • Rear diff clearance: 10"
  • Central cross beam clearance: 10 1/2"
Wheelbase:
  • Total wheelbase: 119"
  • Rear wheel center to middle body seam: 57"
  • Front wheel center to middle body seam: 62"
Tire width and spacing:
  • Fender Offset to Tire Outside: 0" – -1/8" (All 4 tires are slightly inset or flush with fender)
  • Front tire inside to edge of shock mount lip: 3 1/4"
  • Rear tire inside to top control arm: 2"


DC4xe

New Member
Joined
May 20, 2021
Messages
3
Reaction score
7
Location
Washington, DC
Vehicle(s)
2021 Wrangler 4xe
This is some very useful information! Any pictures of your rig with the wheels installed?


ExpeditionBuilds

Well-Known Member
Rock Sponsor (Level 1)
First Name
Steven
Joined
Feb 11, 2020
Messages
940
Reaction score
1,554
Location
Chicago
Website
www.youtube.com
Vehicle(s)
2020 Wrangler Recon
Build Thread
Link
Occupation
Photographer/ Content Creator
I couldn't get any straight information on the 4xe Rubicon dimensions before I bought mine. I saw that it was one inch taller than other JL Rubicons, but couldn't get total numbers. So, I measured everything in preparation for the lift. I'll post the updated dimensions after, but here is the "Before."



Heights:
  • Roof Height at rear wheel center, vehicle center: 73 3/8"
  • Roof Height at front side of freedom panel, passenger side: 70 1/4"
  • Tire Height 32"
  • Inside front fender at edge of liner: 39 1/4" Driver, 39 1/8" Passenger
  • Inside rear fender at edge of liner: 39 3/8" Driver, 39 1/4" Passenger
  • Top of spare tire height from ground: 58 5/8"
  • Top of spare to top of glass: 10 3/4"
  • Top of third brake light to top of glass: 8 3/4"
Clearances:
  • Rail clearance at middle body seam: 17 3/8" Driver, 17 1/4" Passenger
  • Front diff clearance: 10"
  • Rear diff clearance: 10"
  • Central cross beam clearance: 10 1/2"
Wheelbase:
  • Total wheelbase: 119"
  • Rear wheel center to middle body seam: 57"
  • Front wheel center to middle body seam: 62"
Tire width and spacing:
  • Fender Offset to Tire Outside: 0" – -1/8" (All 4 tires are slightly inset or flush with fender)
  • Front tire inside to edge of shock mount lip: 3 1/4"
  • Rear tire inside to top control arm: 2"
Nice work putting the measurements together Joe!


-Steven


mikem20

Well-Known Member
First Name
Mike
Joined
Dec 29, 2019
Messages
204
Reaction score
197
Location
Woodland, Ca
Vehicle(s)
2020 JLUR
Build Thread
Link

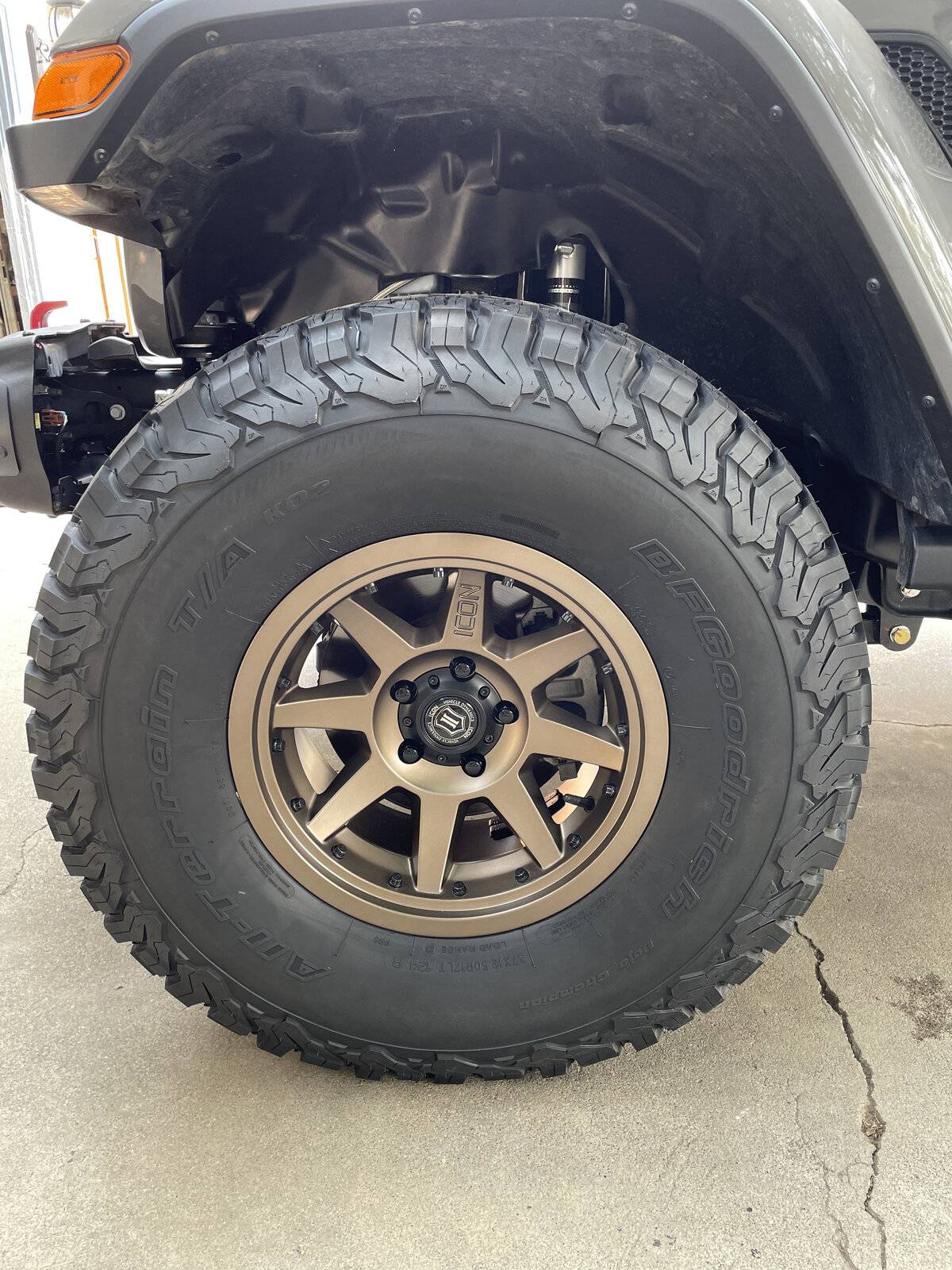

I’m really liking my rebound pro’s on KO2’s. Think you will too.



Motocafe

New Member
First Name
Eric
Joined
Aug 31, 2021
Messages
1
Reaction score
0
Location
Fort Collins, CO
Vehicle(s)
Wrangler Sahara
Hi Joe, I actually live in Fort Collins and am looking to order a new 4xe - did you do anything special to receive the 6% below invoice? I'm assuming the price didn't include the federal tax credit (only on leases I believe)? I wanted to ask before heading into the dealership. thanks
